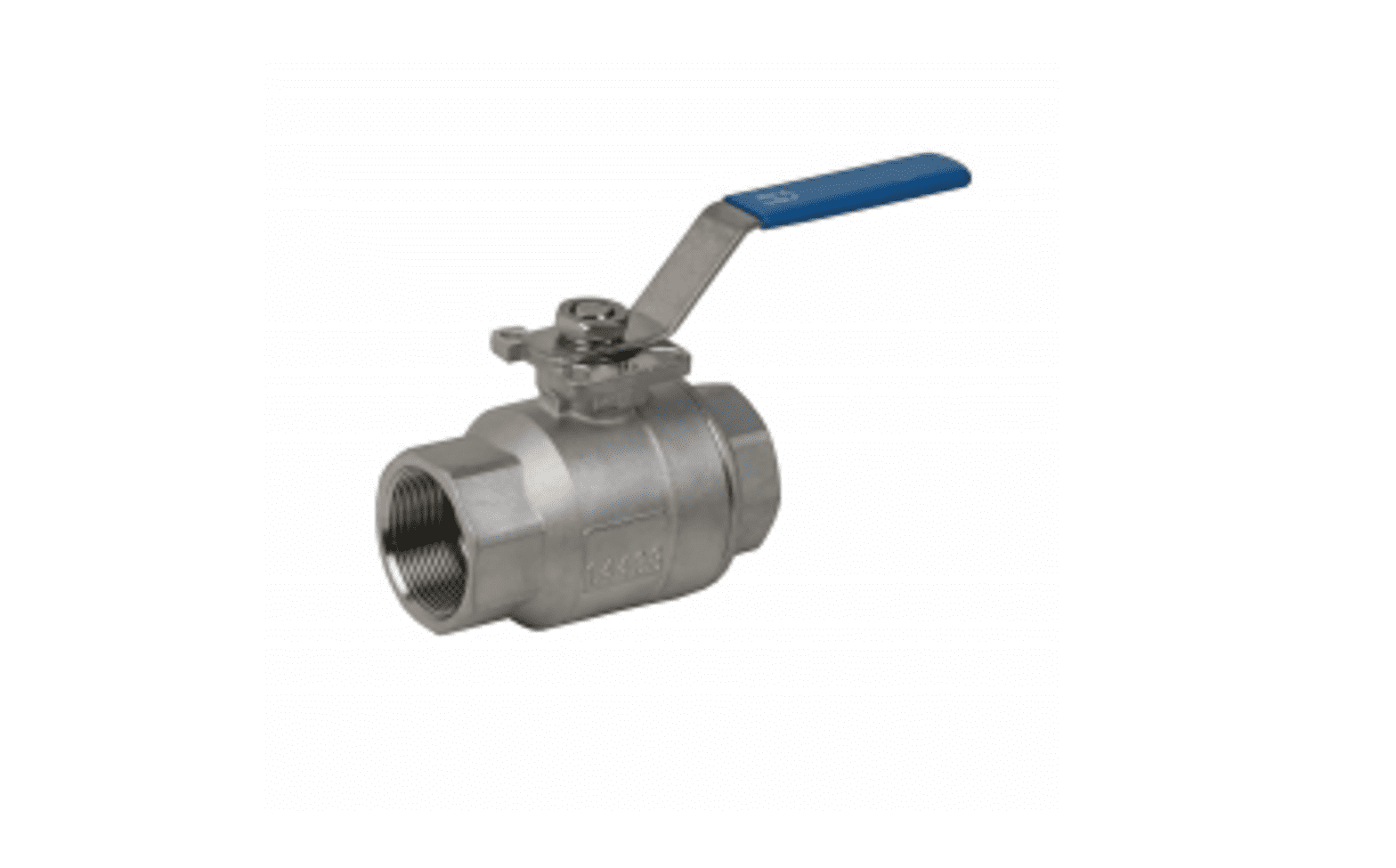

Series. M202 2 piece Ball Valve
PN 100
2 piece Ball Valve
PN 100
▪ High quality investment casting
▪ 2 pcs swing-out body
▪ Blow out proof stem
▪ ISO 5211 Mounting flange for actuator
▪ Min. wall thickness design according to EN 12516-1
▪ Test Pressure: API598/EN 12266-1
Hydrostatic test:
1.4408- 146 bar
Seat(air) test: 80 PSI (6 bar) under water Seat(water) test: 110 bar
Orifice DN 8 to DN 100
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
End Cap CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE or RPTFE
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
End Connections Standard: BSP, NPT, PT
Options: Male thread
Pressure Rating 1500 PSI (PN 100), 1/4” to 2”
1000 PSI (PN 63), 2 ½” to 3”
Options Degreased, Anti static, V-port ball, Lever with locking device
Installation If required

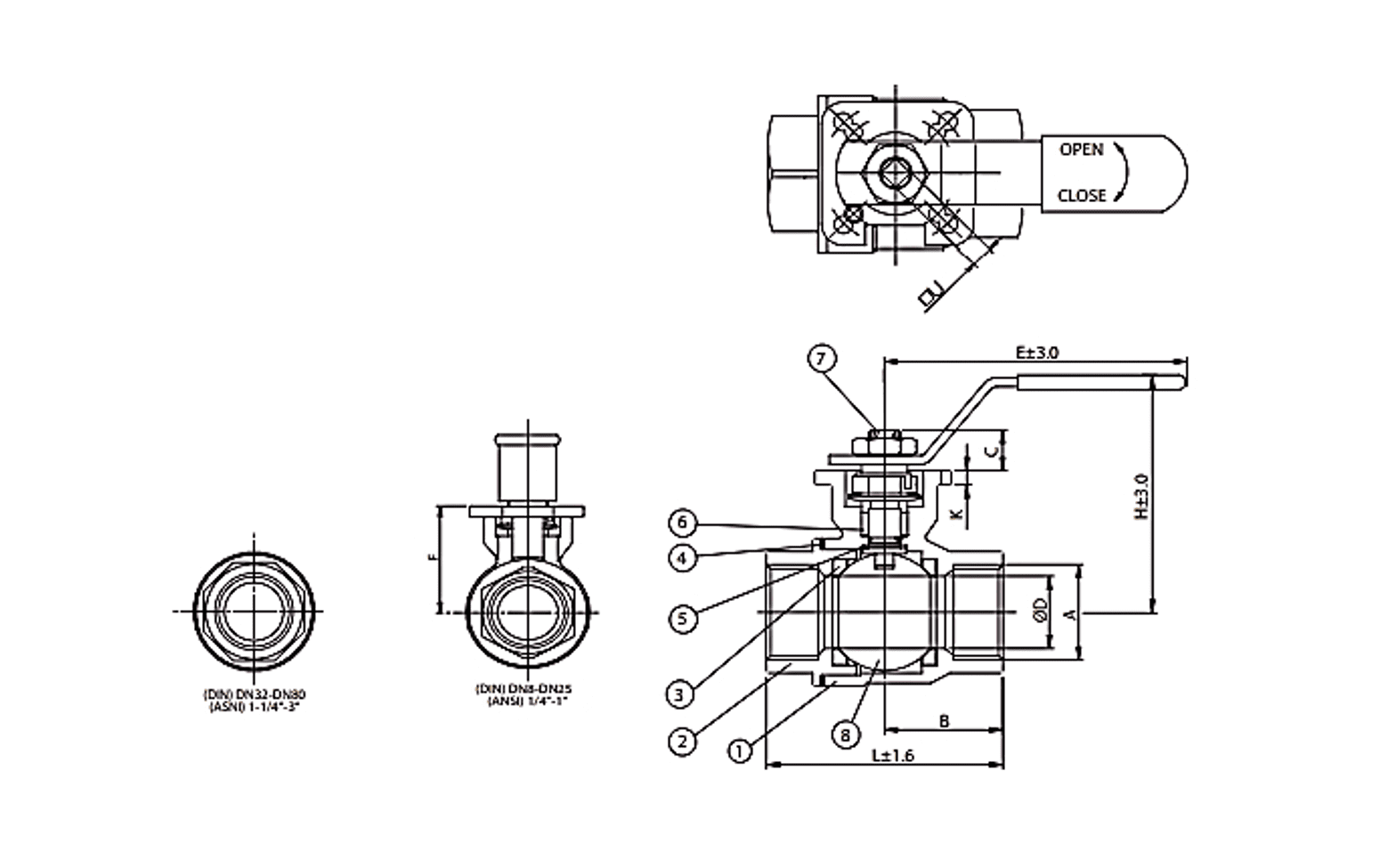

Principal technical data
| Size | ØD | A | B | L | H | E | ⃞U | F | ISO 5211 | K | C | Weight(kg) |
| DN8 | 11.6 | G1/4“ | 24.95 | 50.0 | 71.0 | 120.0 | 9 | 33.2 | F03/F04 | 5.0 | 7.0 | 0.16 |
| DN10 | 12.7 | G3/8“ | 30.0 | 60.0 | 71.0 | 120.0 | 9 | 33.2 | F03/F04 | 5.0 | 7.0 | 0.25 |
| DN15 | 15.0 | G1/2“ | 37.5 | 75.0 | 73.0 | 120.0 | 9 | 35.0 | F03/F04 | 5.0 | 7.5 | 0.38 |
| DN20 | 20.0 | G3/4“ | 40.3 | 80.0 | 79.5 | 150.0 | 11 | 41.1 | F04/F05 | 6.0 | 12.1 | 0.64 |
| DN25 | 25.0 | G1“ | 45.5 | 90.0 | 83.0 | 150.0 | 11 | 44.5 | F04/F05 | 6.0 | 12.1 | 0.82 |
| DN32 | 31.8 | G1-1/4“ | 55.0 | 110.0 | 88.0 | 150.0 | 11 | 49.4 | F04/F05 | 6.0 | 11.5 | 1.48 |
| DN40 | 38.0 | G1-1/2“ | 60.4 | 120.0 | 93.5 | 150.0 | 11 | 55.0 | F04/F05 | 6.0 | 12.1 | 2.08 |
| DN50 | 50.8 | G2“ | 69.9 | 140.0 | 107.0 | 190.0 | 14 | 66.5 | F05/F07 | 6.0 | 15.5 | 3.66 |
| DN65 | 65.0 | G2-1/2" | 92.5 | 185.0 | 158.0 | 350.0 | 17 | 101.0 | F07 | 9.0 | 18.0 | 7.04 |
| DN80 | 76.0 | G3" | 102.0 | 205.0 | 168.0 | 350.0 | 17 | 111.0 | F07 | 9.0 | 18.0 | 11.13 |
