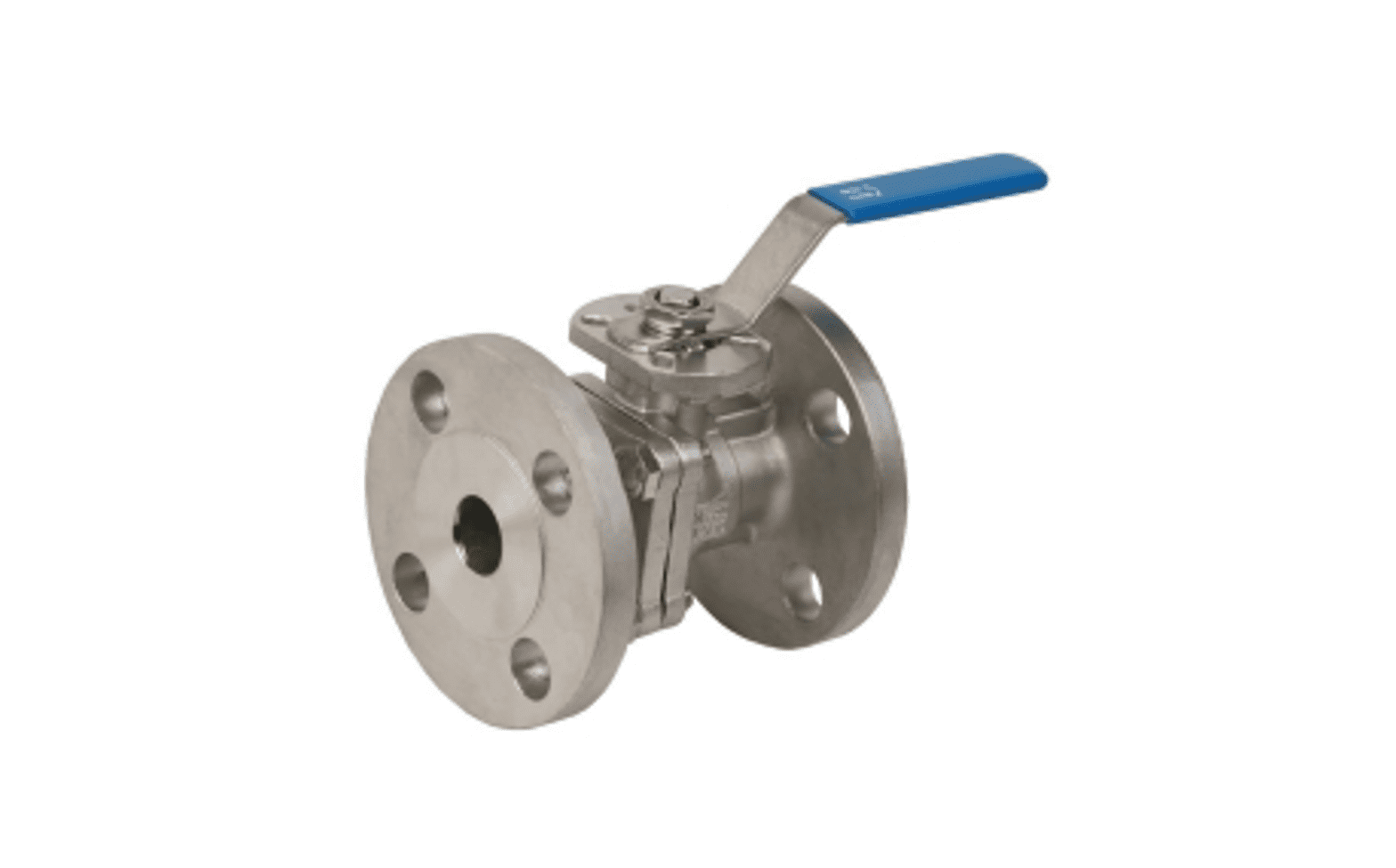

Series. M210 2 piece Flanged End Ball Valve JIS 10K
2 piece Flanged End Ball Valve
JIS 10K
High quality investment casting
Full bore design
Blow out proof stem
ISO 5211 Mounting flange for actuator
Min. wall thickness design according to ASME B16.34
Fire safe design: API 607
Test Pressure: API598/EN 12266-1
Hydrostatic test:
1.4408- 24K/156 PSI
Seat(air) test: 80 PSI (6 Bar) under water Seat(water) test: 156 PSI

Orifice                           DN 15 to DN 100

Material
Body                             SCS13A (DIN 1.4308), SCS14A (DIN 1.4408), WCB (DIN 1.0619)
End Cap                        SCS13A (DIN 1.4308), SCS14A (DIN 1.4408), WCB (DIN 1.0619)
Stem material              304SS, 316SS
Ball                                SCS13A, SCS14A
Seal Material
Main Seal                      PTFE or RPTFE
Body Seal                      PTFE or RPTFE
Stem Seal                      PTFE/RPTFE with FKM O-ring
Option                          MG 1241 (Steam), TFM4215, TFM 1600, PEEK
Handle Material           SUS304/Carbon steel
Media                            Gaseous and liquids that is compatible with the selected material
Media Temperature    -10°C to +180°C (PTFE Seat)
                                       -10°C to +200°C (MG 1241 Seat)
End Connections         Flange End
Pressure Rating            JIS10K, 1/2" to 4"

Options                         Degreased, Anti static, V-port ball, Lever with locking device
Installation                    If required

Principal technical data

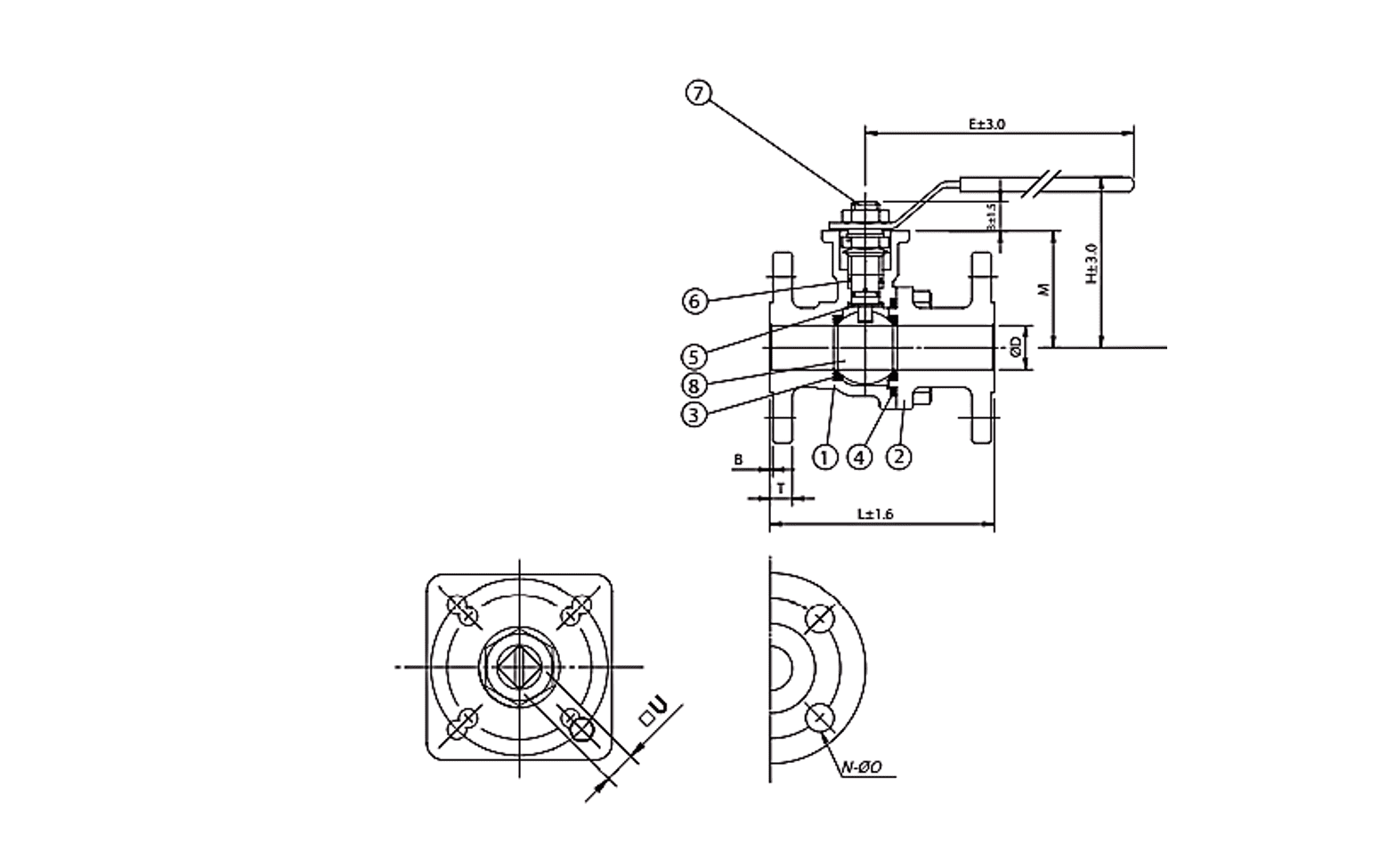

Size ØD L H E T N ØO B C ⃞U ISO 5211 M Weight (kg)
1/2" 15.0 108.0 84.0 118.0 12.0 4.0 15.0 1.0 8.3 9 F03/F04 48.0 1.68
3/4" 20.0 117.0 89.0 118.0 14.0 4.0 15.0 1.0 8.1 9 F03/F04 53.0 2.07
1" 25.0 127.0 91.0 150.0 14.0 4.0 19.0 1.0 12.5 11 F04/F05 56.5 3.57
1-1/4" 32.0 140.0 107.0 150.0 16.0 4.0 19.0 2.0 10.0 11 F04/F05 71.0 3.90
1-1/2" 38.0 165.0 118.0 188.0 16.0 4.0 19.0 2.0 13.1 14 F05/F07 80.0 5.72
2" 50.0 178.0 124.0 188.0 16.0 4.0 19.0 2.0 14.8 14 F05/F07 86.0 8.36
2-1/2" 65.0 190.5 158.0 350.0 18.0 4.0 19.0 2.0 18.0 17 F07 101.0 8.03
3" 76.0 203.0 168.0 350.0 18.0 8.0 19.0 2.0 18.0 17 F07 111.0 13.48
4" 100.0 229.0 213.0 345.0 18.0 8.0 19.0 2.0 18.0 17 F07/F10 131.0 16.86
