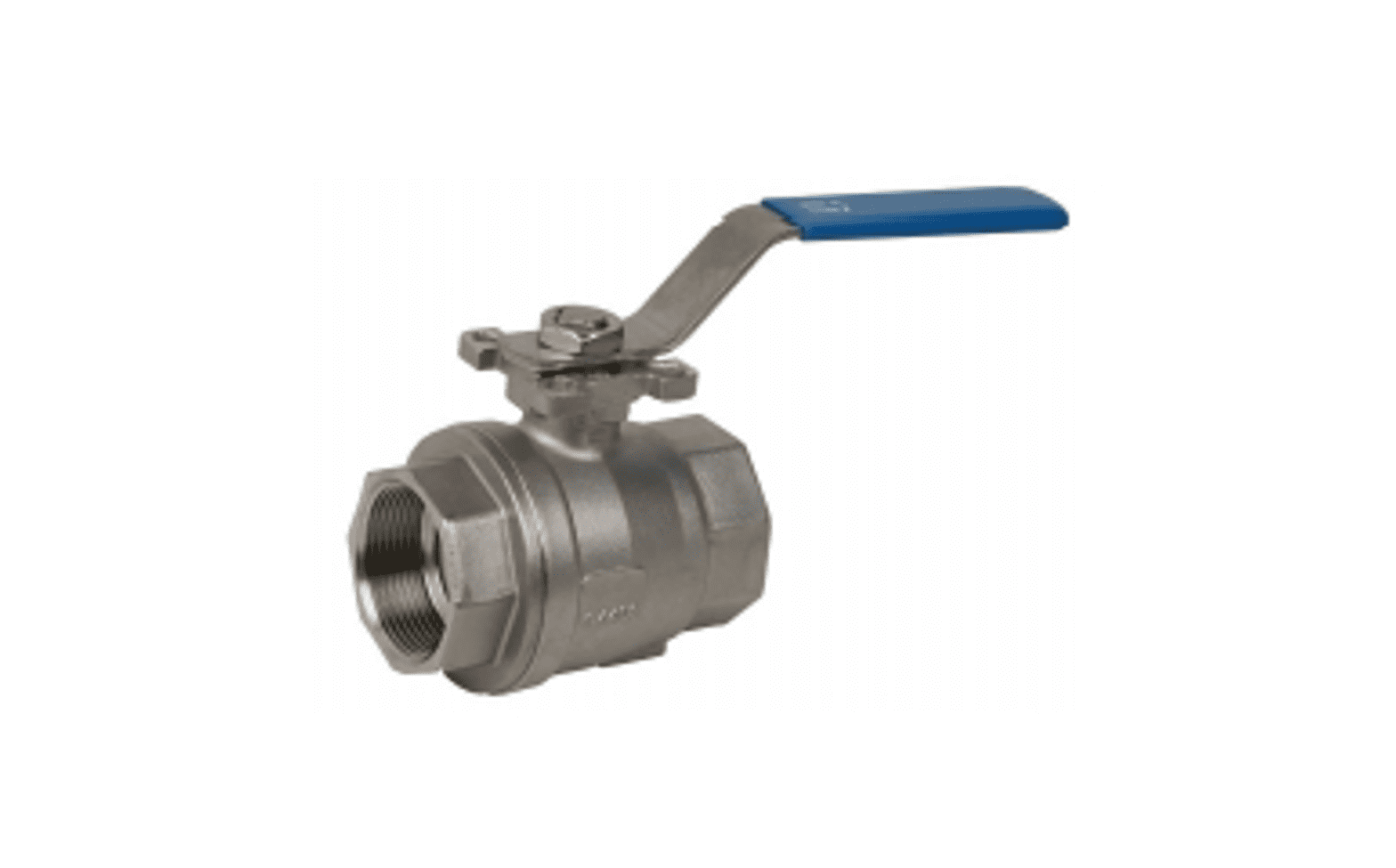

Series. M211 2 piece Ball Valve
1000 WOG
2 piece Ball Valve
1000 WOG
▪ High quality investment casting
▪ Full bore design
▪ Blow out proof stem
▪ ISO 5211 Mounting flange for actuator
▪ Min. wall thickness design according to EN 12516-1
▪ Test Pressure: API598/EN 12266-1
▪ Hydrostatic test:
1.4408- 24 bar
Seat(air) test: 80 PSI (6 bar) under water Seat(water) test: 18 bar
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
End Cap CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE or RPTFE
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
End Connections Standard: BSP, NPT, PT
Pressure Rating 0 to 63 bar (PN 63), 1/4” to 2”
Options Degreased, Anti static, V-port ball, Lever with locking device
Installation If required
Principal technical data
Orifice DN 8 to DN 50
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
End Cap CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE or RPTFE
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
End Connections Standard: BSP, NPT, PT
Pressure Rating 0 to 63 bar (PN 63), 1/4” to 2”
Options Degreased, Anti static, V-port ball, Lever with locking device
Installation If required
Principal technical data

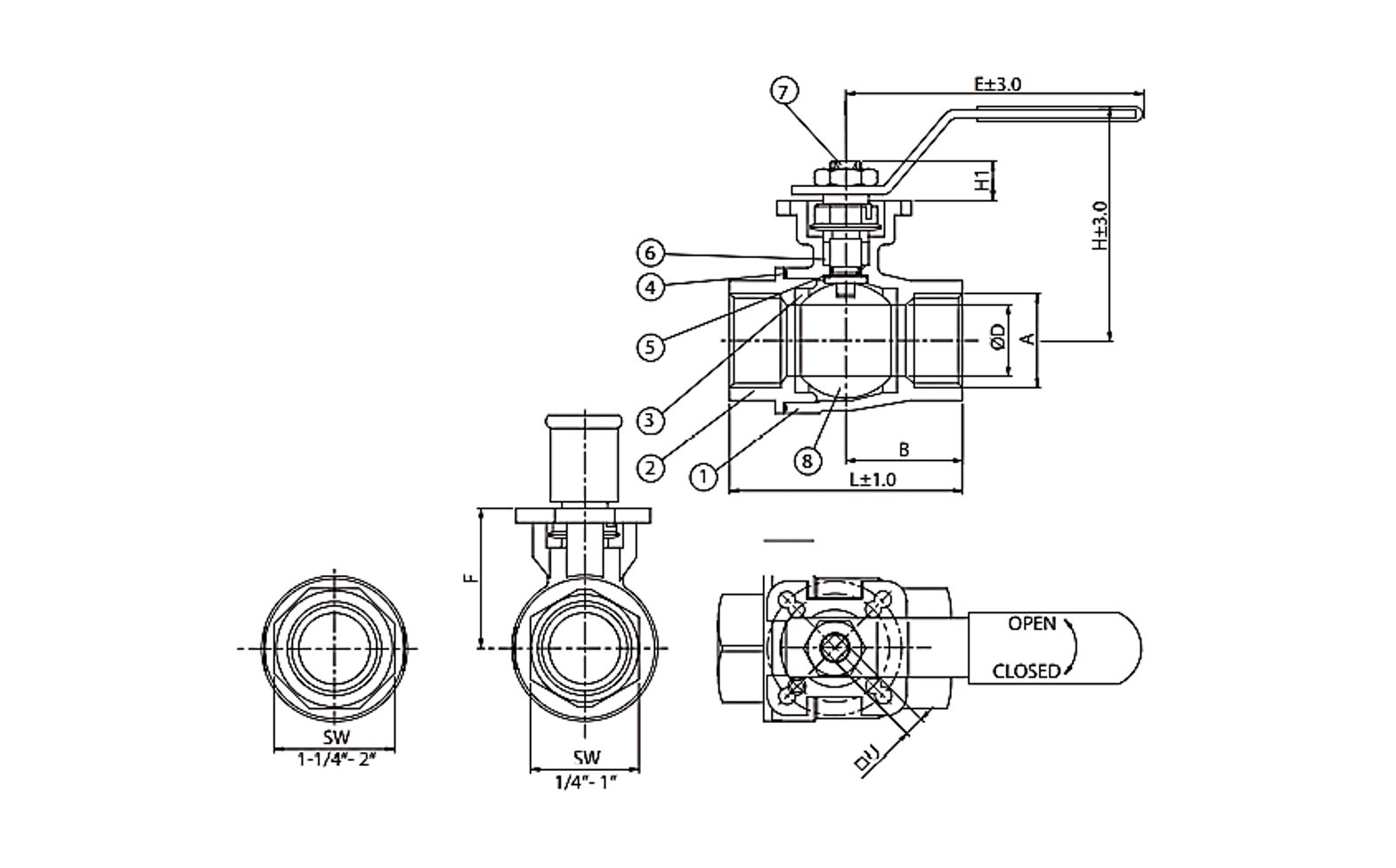

| Size | ØD | A | B | L | H | H1 | E | ⃞U | F | ISO 5211 | SW | Weight(kg) |
| DN8 | 8.0 | G1/4" | 30.5 | 46.0 | 71.0 | 7.0 | 120.0 | 9 | 33.0 | F03/F04 | 17.0 | 0.25 |
| DN10 | 10.0 | G3/8" | 30.5 | 46.0 | 71.0 | 7.0 | 120.0 | 9 | 33.0 | F03/F04 | 21.0 | 0.25 |
| DN15 | 15.0 | G1/2" | 30.5 | 57.0 | 73.0 | 7.5 | 120.0 | 9 | 35.0 | F03/F04 | 26.0 | 0.42 |
| DN20 | 20.0 | G3/4" | 32.7 | 63.0 | 79.0 | 12.1 | 152.0 | 11 | 41.0 | F04/F05 | 32.0 | 0.52 |
| DN25 | 25.0 | G1" | 37.65 | 77.0 | 82.0 | 12.1 | 152.0 | 11 | 43.0 | F04/F05 | 38.0 | 0.82 |
| DN32 | 31.8 | G1-1/4" | 48.15 | 89.0 | 88.5 | 11.0 | 152.0 | 11 | 50.0 | F04/F05 | 48.0 | 1.48 |
| DN40 | 38.0 | G1-1/2" | 51.0 | 98.0 | 92.5 | 12.0 | 152.0 | 11 | 54.0 | F04/F05 | 54.0 | 2.08 |
| DN50 | 50.8 | G2" | 63.1 | 116.0 | 105.0 | 15.5 | 190.0 | 14 | 64.0 | F05/F07 | 67.0 | 3.66 |
