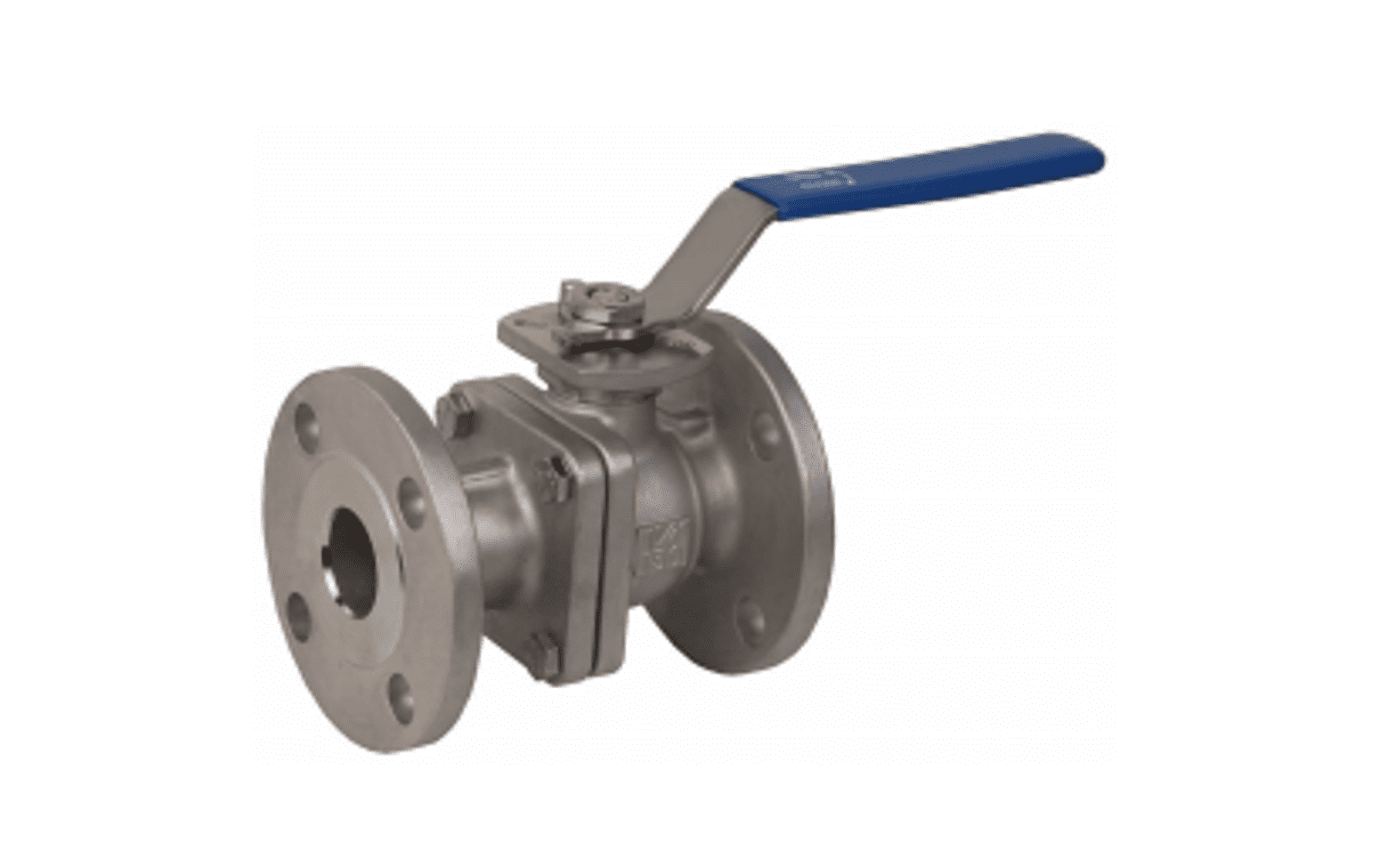

Series. M215 2 piece Flanged End Ball Valve Class 150
2 piece Flanged End Ball Valve
Class 150
High quality investment casting
Full bore design
Blow out proof stem
ISO 5211 Mounting flange for actuator
Min. wall thickness design according to ASME B16.34
Fire safe design: API 607
Test Pressure: API598/EN 12266-1
Hydrostatic test:
CF8M- 425 PSI
Seat(air) test: 80 PSI (6 Bar) under water Seat(water) test: 303 PSI

Orifice                           DN 15 to DN 100

Material
Body                             CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
End Cap                        CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Stem material              304SS, 316SS
Ball                                CF8, CF8M
Seal Material
Main Seal                      PTFE or RPTFE
Body Seal                      PTFE or RPTFE
Stem Seal                      PTFE or RPTFE
Option                          MG 1241 (Steam), TFM4215, TFM 1600, PEEK, EPOM, HNBR
Handle Material           SUS304/Carbon steel
Media                            Gaseous and liquids that is compatible with the selected material
Media Temperature    -10°C to +180°C (PTFE Seat)
                                       -10°C to +200°C (MG 1241 Seat)
End Connections         Flange End
Pressure Rating            ASME Class 150, 1/2" to 4"
Options                         Degreased, Anti static, V-port ball, Lever with locking device
Installation                    If required

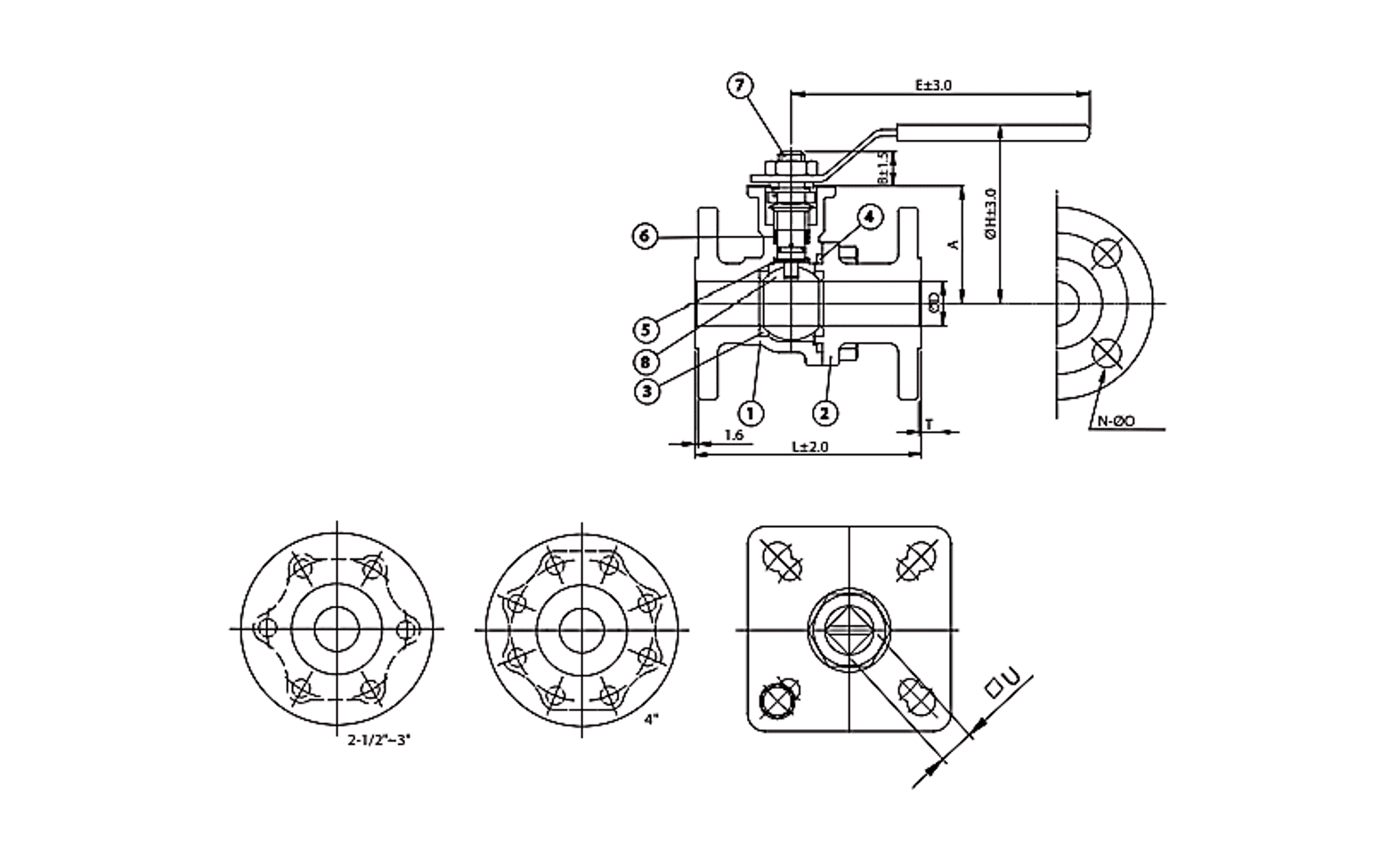

Principal technical data
Size ØD T L N ØO ISO 5211 ⃞U E H B A Weight (kg)
1/2" 13.0 11.1 108.0 4.0 16.0 F03/F04 9 120.0 82.0 9.3 46.0 1.66
3/4" 20.0 11.1 117.0 4.0 16.0 F03/F04 9 120.0 87.0 9.6 50.5 2.04
1" 25.0 11.1 127.0 4.0 16.0 F04/F05 11 152.0 91.0 12.5 56.5 3.10
1-1/4" 32.0 12.7 140.0 4.0 16.0 F04/F05 11 152.0 98.0 12.6 60.0 3.90
1-1/2" 40.0 14.3 165.0 4.0 16.0 F05/F07 14 190.0 118.0 13.1 80.0 5.88
2" 50.0 15.9 178.0 4.0 19.0 F05/F07 14 190.0 124.0 14.8 86.0 8.50
2-1/2" 65.0 17.5 190.5 4.0 19.0 F07 17 350.0 157.0 18.0 101.0 14.50
3" 76.0 19.1 203.0 4.0 19.0 F07 17 350.0 168.0 18.0 111.0 18.06
4" 100.0 23.9 229.0 8.0 19.0 F10/F07 17 350.0 188.0 18.0 131.0 29.17
