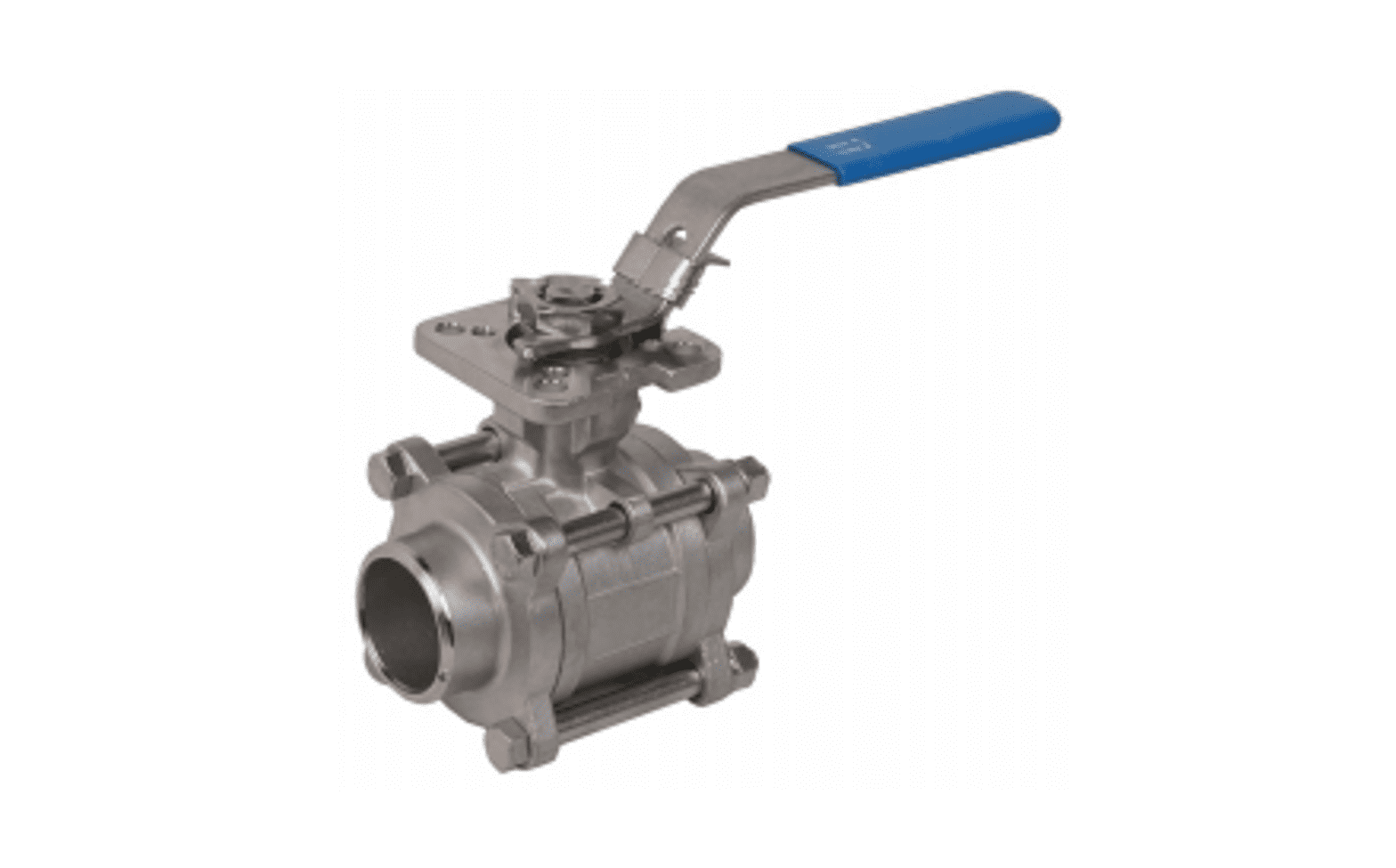

Series. M301 3 piece Ball Valve 1000 WOG/PN63
3 piece Ball Valve
1000 WOG/PN63
High quality investment casting
3 pcs swing-out body
Blow out proof stem
ISO 5211 Mounting flange for actuator
Min. wall thickness design according to ASME B16.34
Test Pressure: API598/EN 12266-1
Hydrostatic test:
1.4408- 1500 PSI
Seat(air) test: 80 PSI (6 Bar) under water Seat(water) test: 1100 PSI

Orifice                           DN 8 to DN 100

Material
Body                             CF8 (DIN 1.4308), CF8M (1.4408), WCB (1.0619)
End Cap                        CF8 (DIN 1.4308), CF8M (1.4408), WCB (1.0619)
Stem material              304SS, 316SS
Ball                                1.4308, 1.4408
Seal Material
Main Seal                      PTFE or RPTFE
Body Seal                      PTFE or RPTFE
Stem Seal                      PTFE/RPTFE with FKM O-ring
Option                          MG 1241 (Steam), TFM4215, TFM 1600, PEEK
Handle Material           SUS304/Carbon steel
Media                            Gaseous and liquids that is compatible with the selected material
Media Temperature    -10°C to +180°C (PTFE Seat)
                                       -10°C to +200°C (MG 1241 Seat)
End Connections         Standard: Threaded Ends, BW, SW
                                       Options: Male thread, Tri-Clamp, Quick Coupling, Flange
Pressure Rating            0 to 63 bar (PN 63), 1/2” to 4”

Options                         Degreased, Anti static, V-port ball, Lever with locking device
Installation                    If required

Principal technical data

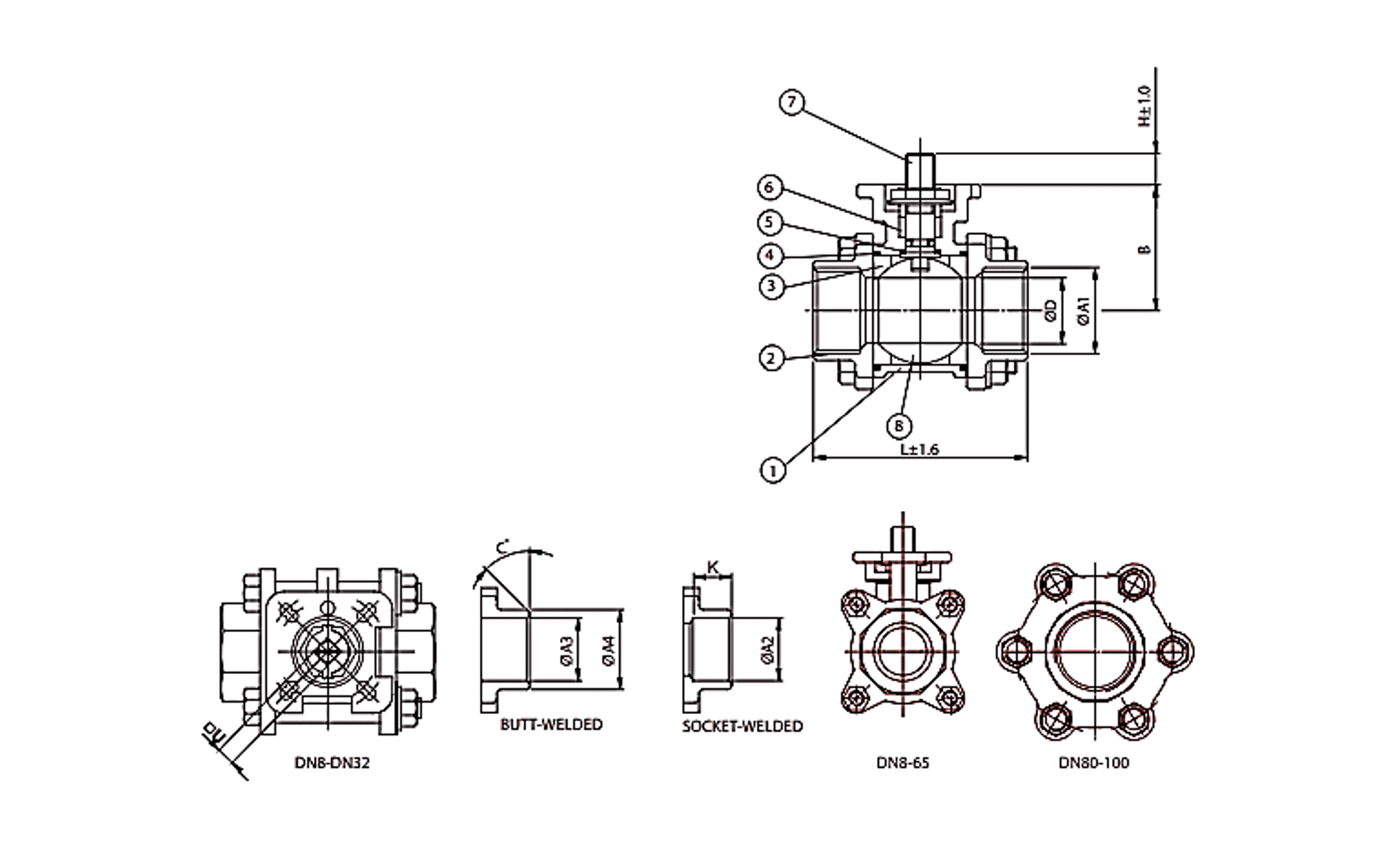

Size ØD L H ⃞U ISO 5211 ØA1 ØA2 K ØA3 ØA4 B Weight(kg)
DN8 11.2 60 7.6 9 F03 G1/4“ 14.22 11.1 11.4 14.0 +2.5/-1 32.4 0.39
DN10 12.7 60 7.6 9 F03/F04 G3/8“ 17.52 11.1 12.7 18.0 +2.5/-1 32.4 0.39
DN15 15.0 75 8.6 9 F03/F04 G1/2“ 21.71 12.7 15.9 22.0 +2.5/-1 40.5 0.65
DN20 20.0 80 9.6 9 F03/F04 G3/4“ 27.05 14.3 20.6 28.0 +2.5/-1.5 50.5 0.89
DN25 25.4 90 12.5 11 F04/F05 G1“ 33.78 15.9 25.0 35.0 +2.5/-1 56.5 1.23
DN32 31.8 110 12.6 11 F04/F05 G1-1/4“ 42.54 17.5 32.0 44.0 +2.5/-2 60 1.92
DN40 38.1 120 16.1 14 F05/F07 G1-1/2“ 48.64 19.1 40.0 50.0 +2.5/-2 77 2.96
DN50 50.8 140 16.8 14 F05/F07 G2“ 61.11 22.2 50.8 62.0 +2.5/-2 84 4.71
DN65 65.0 185 18 17 F07/F10 G2-1/2“ 73.81 29.5 65.0 77.0 ±2.5 101 8.22
DN80 76.0 205 18 17 F07/F10 G3“ 90.20 31.0 80.0 91.0 ±2.5 111 13.14
DN100 100 240 18 17 F07/F10 G4“ 115.06 39.0 100.0 117.0 ±2.5 131 21.5
