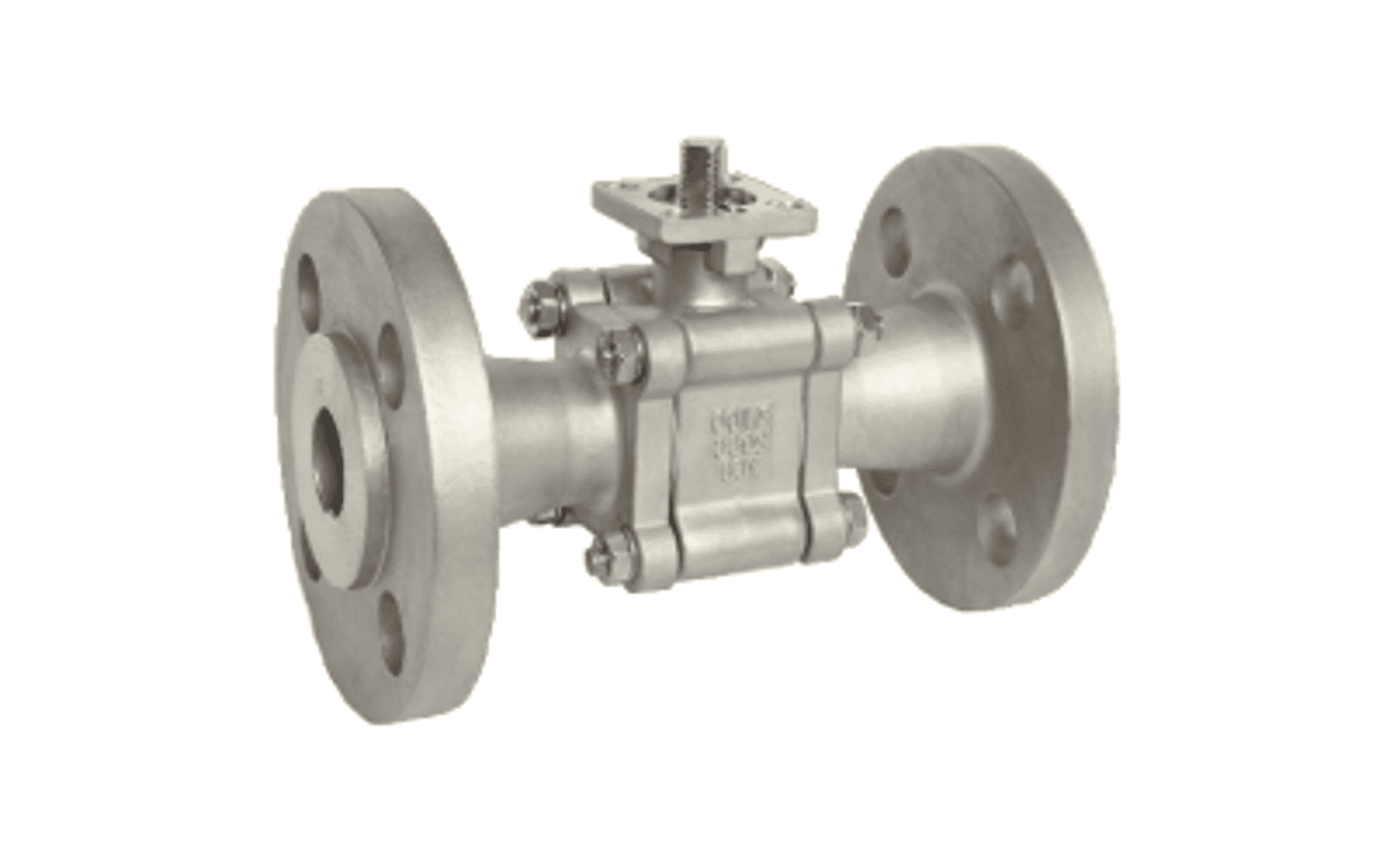

Series. M325 3 piece Flange End Ball Valve PN40
3 piece Flange End Ball Valve
PN40
▪ High quality investment casting
▪ 3 pcs swing-out body
▪ Blow out proof stem
▪ ISO 5211 Mounting flange for actuator
▪ Min. wall thickness design according to EN 12516-1
▪ Test Pressure: API598/EN 12266-1
Hydrostatic test:
1.4408- 59 bar
Seat(air) test: 80 PSI (6 Bar) under water Seat(water) test: 44 bar
Orifice DN 8 to DN 100
Material
Body DIN 1.4308 (CF8), DIN 1.4408 (CF8M), DIN 1.0619 (WCB)
End Cap CF8,CF8M,WCB
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTE
Stem Seal PTFE/RPTFE with FKM O-ring
Option MG 1241 (Steam), TFM4215, TFM 1600, PEEK
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
-10°C to +200°C (MG 1241 Seat)
End Connections Standard: BSP, NPT, PT, BW, SW
Flange End
Pressure Rating PN 40, 1/2" to 4"
Options Degreased, Anti static, V-port ball, Extension stem, Lever with locking device
Installation If required

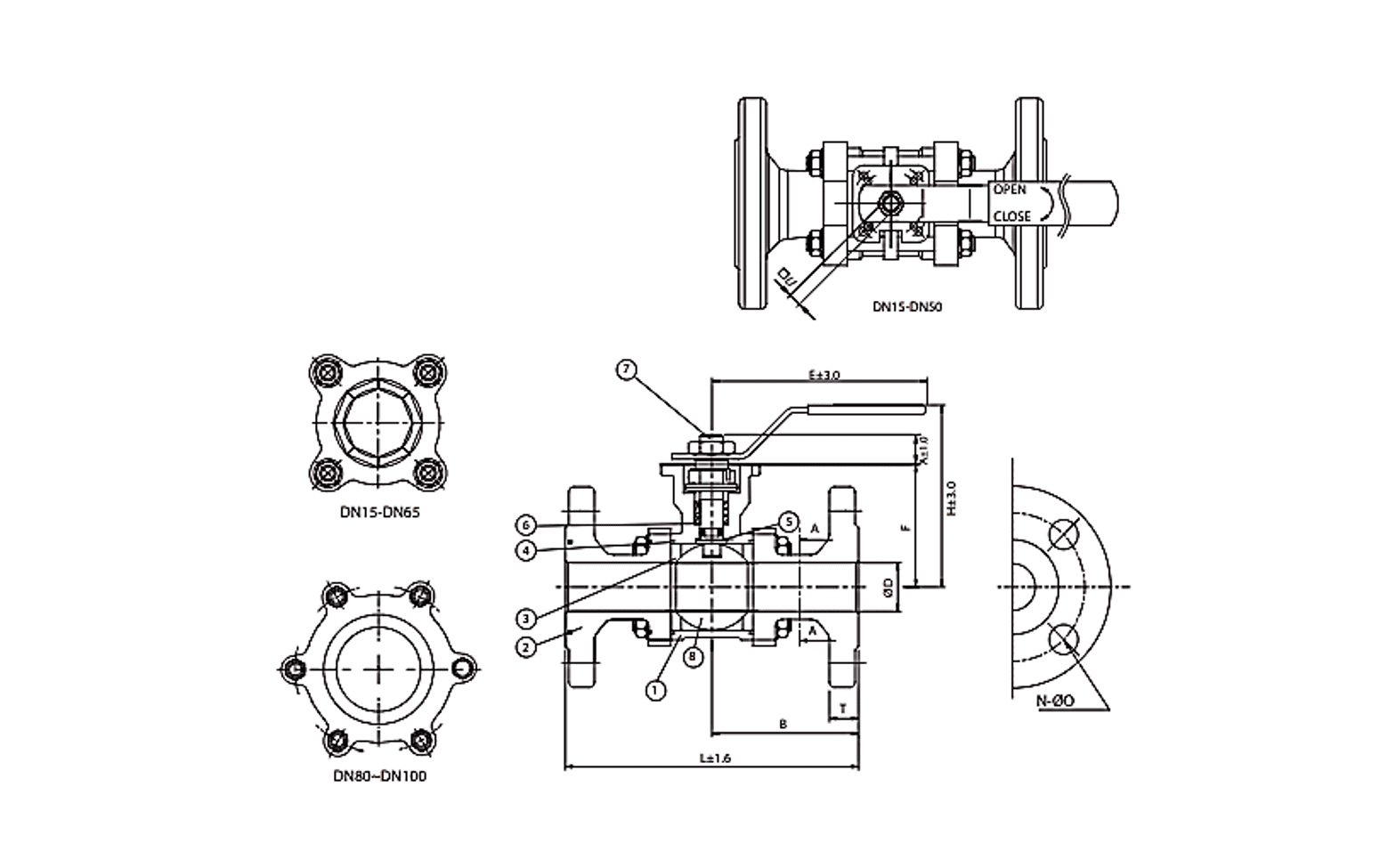

Principal technical data
Size | ØD | L | B | H | E | ⃞U | ISO 5211 | A | T | ØO | N | F | Weight(kg) |
DN15 | 15.0 | 130.0 | 65.0 | 79.0 | 120.0 | 9 | F03/F04 | 8.6 | 16.0 | 14.0 | 4.0 | 40.5 | 2.20 |
DN20 | 20.0 | 150.0 | 75.0 | 89.0 | 120.0 | 9 | F04/F05 | 9.6 | 18.0 | 14.0 | 4.0 | 50.5 | 3.50 |
DN25 | 25.4 | 160.0 | 80.0 | 95.0 | 152.0 | 11 | F04/F05 | 12.5 | 18.0 | 14.0 | 4.0 | 56.5 | 3.96 |
DN32 | 31.8 | 180.0 | 90.0 | 98.5 | 152.0 | 11 | F04/F05 | 12.6 | 18.0 | 18.0 | 4.0 | 60.0 | 6.00 |
DN40 | 38.1 | 200.0 | 100.0 | 118.0 | 190.0 | 14 | F05/F07 | 16.1 | 18.0 | 18.0 | 4.0 | 77.0 | 7.40 |
DN50 | 50.0 | 230.0 | 115.0 | 125.0 | 190.0 | 14 | F05/F07 | 16.8 | 20.0 | 18.0 | 4.0 | 84.0 | 10.60 |
DN65 | 65.0 | 290.0 | 145.0 | 158.0 | 350.0 | 17 | F07/F10 | 18.0 | 22.0 | 18.0 | 8.0 | 101.0 | 18.00 |
DN80 | 76.0 | 310.0 | 155.0 | 168.0 | 350.0 | 17 | F07/F10 | 18.0 | 24.0 | 18.0 | 8.0 | 111.0 | 22.0 |
DN100 | 100.0 | 350.0 | 175.0 | 188.0 | 350.0 | 17 | F07/F10 | 18.0 | 24.0 | 22.0 | 8.0 | 131.0 | 33.58 |
