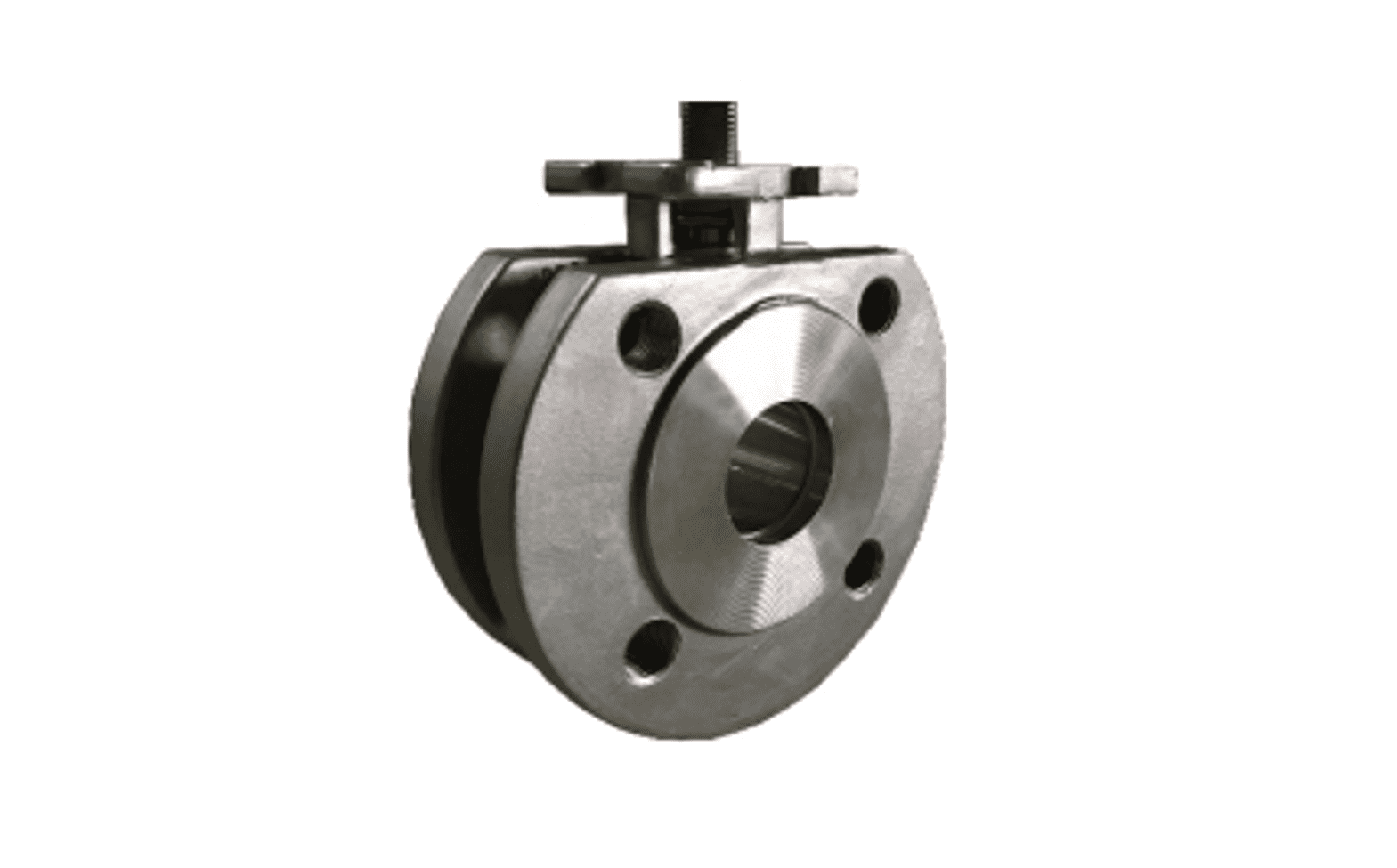

Series. W116 Wafer Type Flange End Ball Valve PN16
Wafer Type Flange End Ball Valve
PN16
▪ High quality investment casting
▪ Blow out proof stem
▪ ISO 5211 Mounting flange for actuator
▪ Min. wall thickness design according to EN 12516-1
▪ Test Pressure: API598/EN 12266-1
Hydrostatic test:
1.4408- 24 bar
Seat(air) test: 80 PSI (6 Bar) under water Seat(water) test: 18 bar
Orifice DN 15 to DN 100
Material
Body CF8 (EN 1.4308), CF8M (EN 1.4408), WCB (EN 1.0619)
End Cap CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Ball / Stem material 316SS
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE/RPTFE with FKM O-ring
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
Port Connection Flange to PN16
Pressure Rating PN16, 1/2" to 4"
Options Degreased, Anti static, V-port ball, Lever with locking device
Installation If required

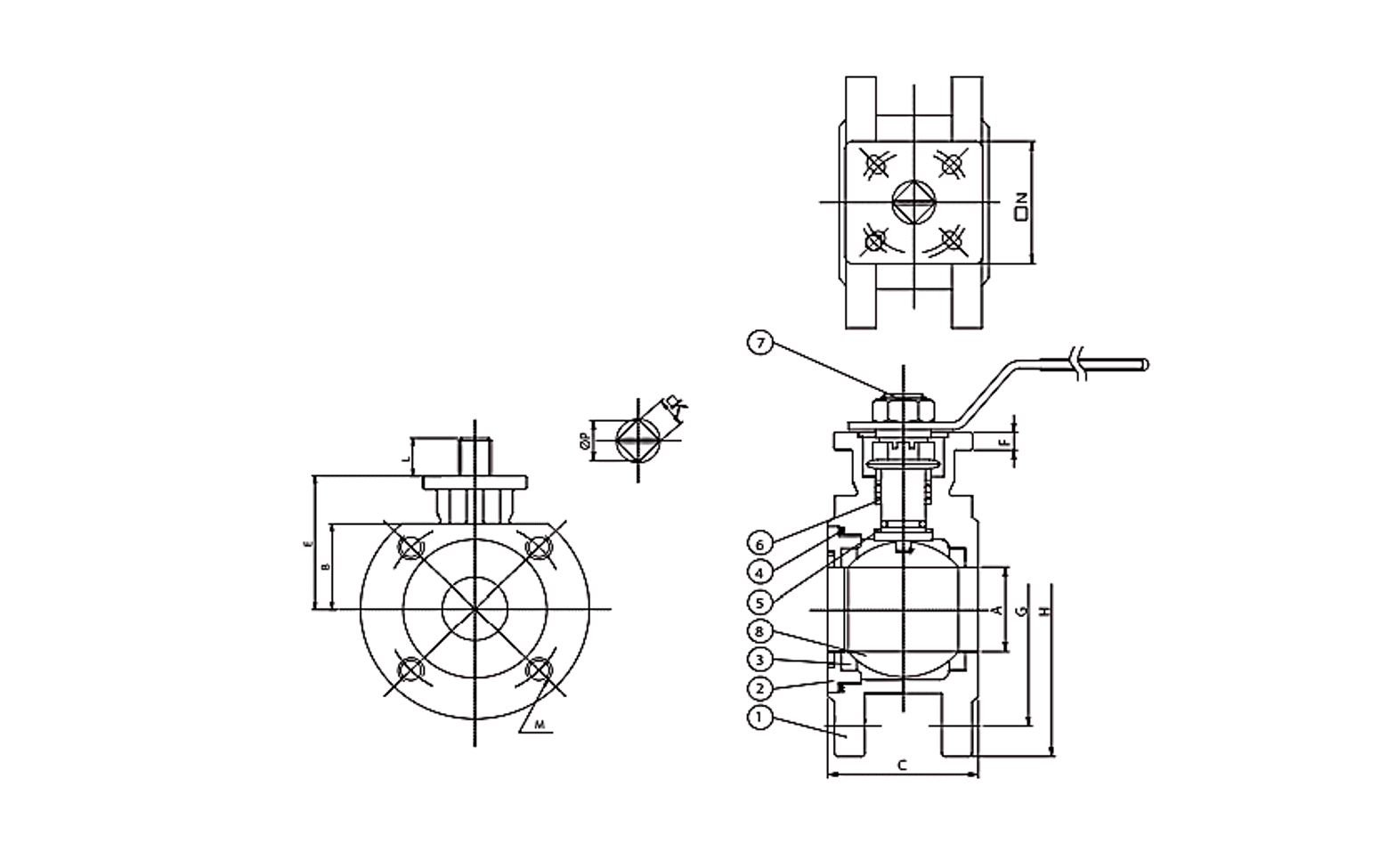

Principal technical data
| Size | C | A | B | E | F | ⃞N | ISO 5211 | ⃞K | P | L | Weight(kg) |
| DN15 | 40.0 | 15.0 | 34.5 | 60.0 | 6.3 | 43.5 | F03/F04 | 9 | 12.0 | 7.86 +1.5/-0.5 | 1.60 |
| DN20 | 44.0 | 20.0 | 38.5 | 64.3 | 7.0 | 43.5 | F03/F04 | 9 | 12.0 | 11.0 +1.5/-0.5 | 2.04 |
| DN25 | 53.0 | 25.0 | 44.6 | 64.6 | 7.0 | 48.5 | F04/F05 | 11 | 14.0 | 11.0 +1.5/-0.5 | 2.60 |
| DN32 | 58.4 | 32.0 | 51.0 | 69.0 | 7.0 | 48.5 | F04/F05 | 11 | 14.0 | 11.0 +1.5/-0.5 | 3.60 |
| DN40 | 62.0 | 38.0 | 55.0 | 76.3 | 7.2 | 70.0 | F05/F07 | 14 | 18.0 | 17.0 +1.5/-0.5 | 4.26 |
| DN50 | 78.0 | 50.0 | 63.0 | 85.5 | 7.2 | 70.0 | F05/F07 | 14 | 18.0 | 15.3 +1.5/-0.5 | 5.98 |
| DN65 | 100.0 | 64.0 | 73.5 | 105.0 | 10.6 | / | F07 | 17 | 22.0 | 14.0 +1.5/-0.5 | 10.00 |
| DN80 | 120.0 | 76.0 | 94.0 | 123.0 | 10.6 | / | F07 | 17 | 22.0 | 18.0 +1.5/-0.5 | 14.08 |
| DN100 | 152.0 | 96.0 | 105.0 | 132.0 | 12.6 | / | F07/F10 | 17 | 22.0 | 15.0 +1.5/-0.5 | 20.60 |
