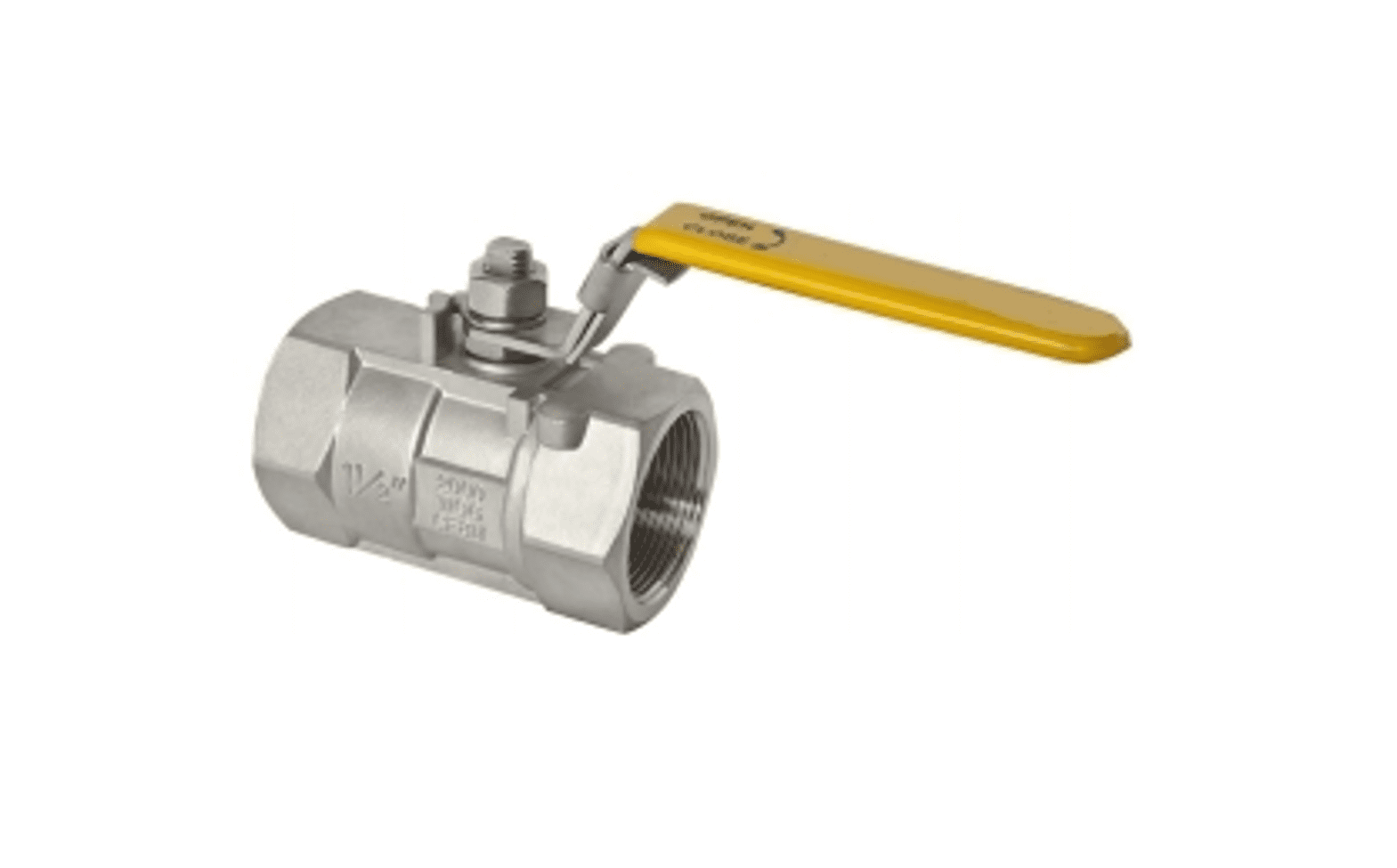

Series. A102 1 piece Ball Valve
2000 WOG
1 piece Ball Valve
2000 WOG
▪ High quality insvestment casting
▪ Blow out proof stem
▪ Min. wall thickness design according to ASME B16.34
▪ Fire Safe Design: API 607
▪ Test Pressure: API1598/EN 12266-1
Hydrostatic test:
1.4408- 3000 PSI
Seat(air) test: 80 PSI (6 bar) under water Seat(water) test: 2200 PSI
Orifice DN 8 to DN 50
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
End Cap CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE
Options MG 1241 (Steam), TFM4215, TFM 1600, PEEK
Handle Material SUS304
Media Gaseous and liquids that is compatible with the seleted material
Media Temperature -10°C to +180°C (PTFE Seat)
Port Connections BSP, NPT, PT
Pressure Rating 0 to 100 bar (PN 100), 1/2” to 2”
0 to 64 bar (PN 64), 2 ½” to 3”
Options Degreased, Oval handle, Butterfly handle, Lever with locking device
Installation If required
Principal technical data
Orifice DN 8 to DN 50
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
End Cap CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE
Options MG 1241 (Steam), TFM4215, TFM 1600, PEEK
Handle Material SUS304
Media Gaseous and liquids that is compatible with the seleted material
Media Temperature -10°C to +180°C (PTFE Seat)
Port Connections BSP, NPT, PT
Pressure Rating 0 to 100 bar (PN 100), 1/2” to 2”
0 to 64 bar (PN 64), 2 ½” to 3”
Options Degreased, Oval handle, Butterfly handle, Lever with locking device
Installation If required
Principal technical data

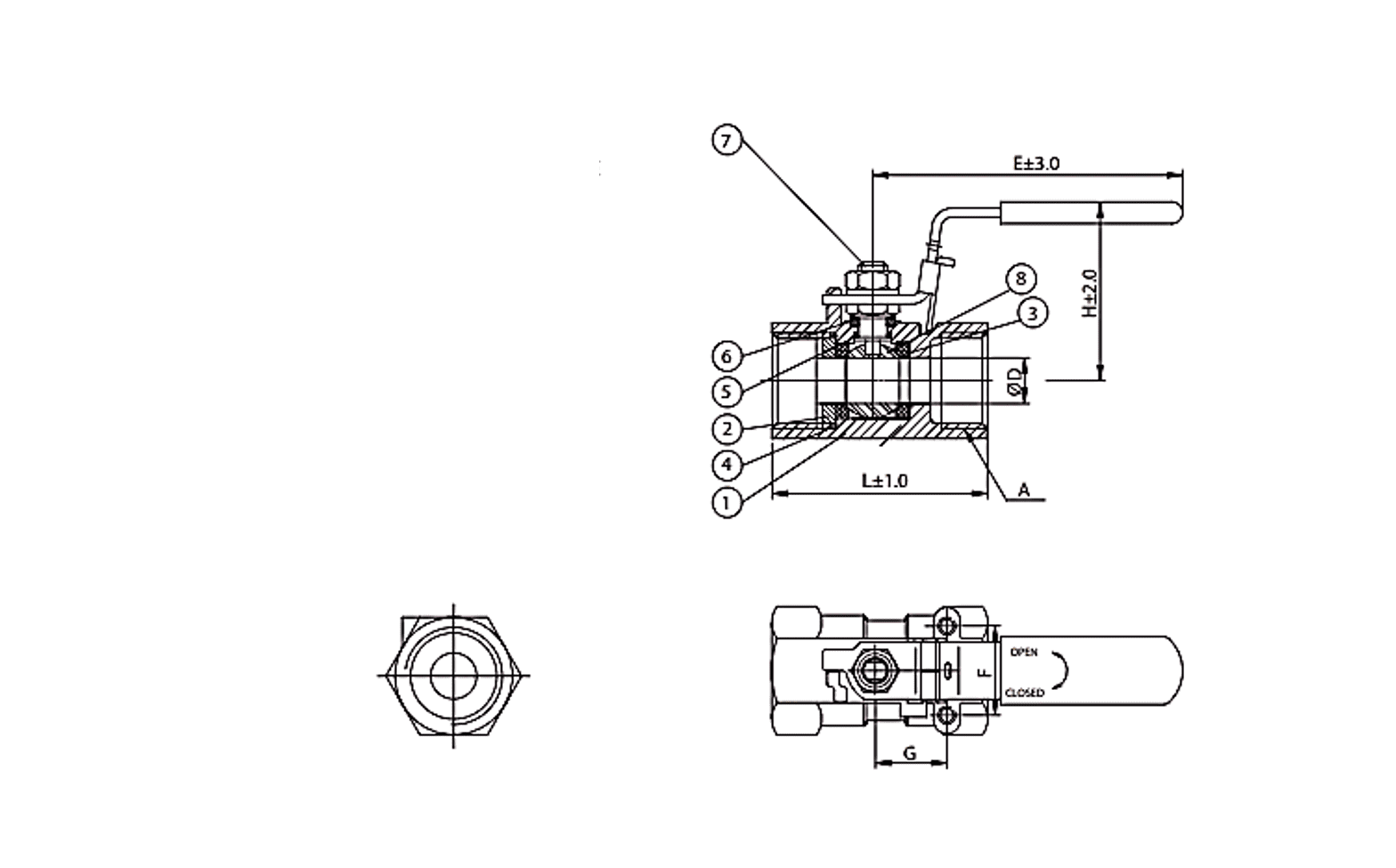

| Size | ØD | L | H | A | E | F | G | Weight (kg) |
| DN8 | 4.6 | 50.0 | 32.5 | G1/4“ | 70.0 | / | / | 0.08 |
| DN10 | 6.8 | 52.0 | 32.5 | G3/8“ | 82.0 | / | / | 0.12 |
| DN15 | 9.2 | 65.0 | 49.0 | G1/2“ | 90.0 | 28.5 | 12.7 | 0.28 |
| DN20 | 12.5 | 70.0 | 52.0 | G3/4“ | 90.0 | 35.0 | 14.5 | 0.43 |
| DN25 | 15.0 | 80.0 | 54.0 | G1“ | 110.0 | 35.0 | 22.4 | 0.63 |
| DN32 | 20.0 | 95.0 | 60.0 | G1-1/4“ | 110.0 | 38.1 | 25.4 | 1.24 |
| DN40 | 25.0 | 100.0 | 68.0 | G1-1/2“ | 140.0 | 38.1 | 25.4 | 1.42 |
| DN50 | 32.0 | 114.0 | 75.0 | G2“ | 140.0 | 38.1 | 25.4 | 3.29 |
