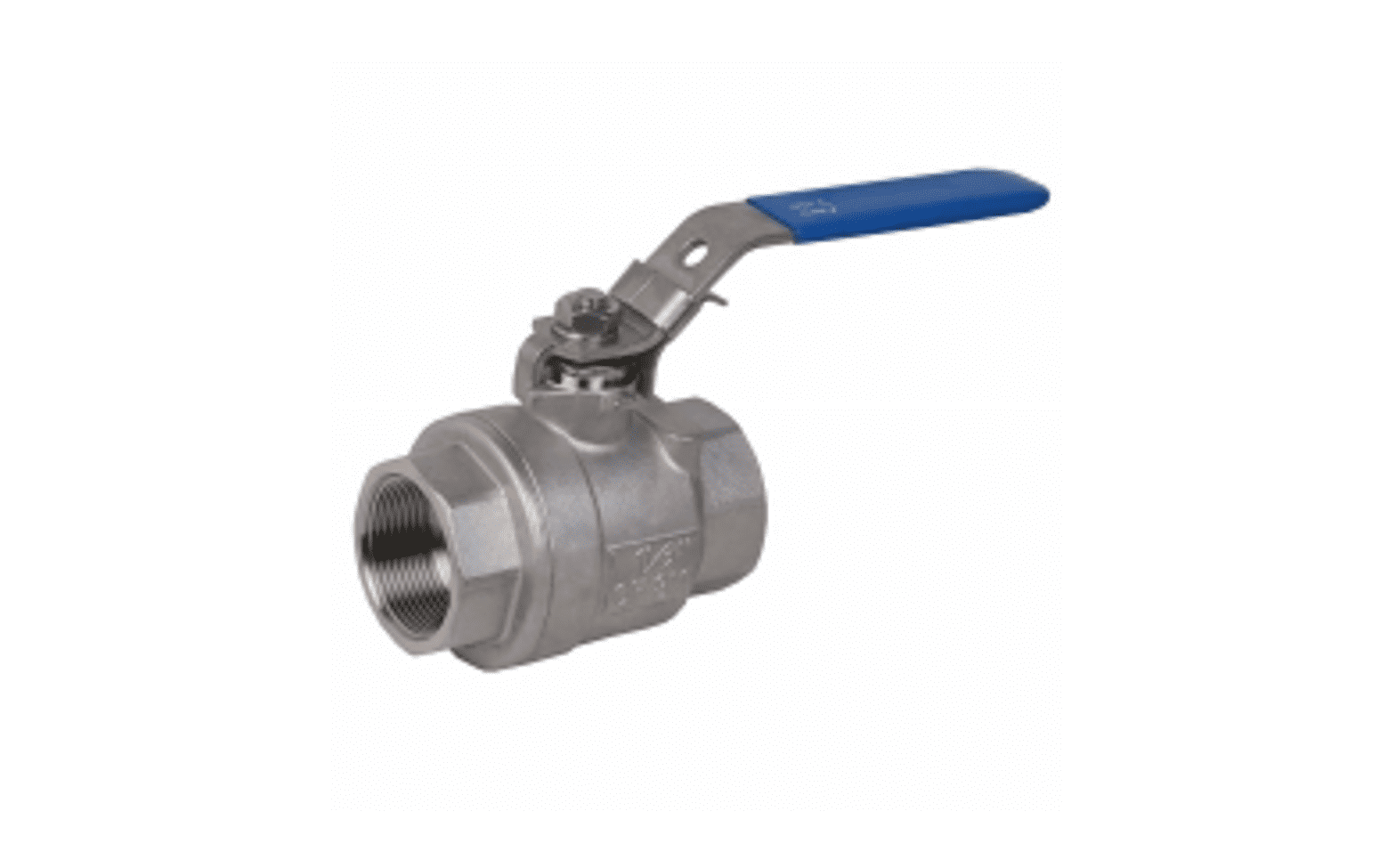

Series. A201 2 piece Ball Valve
1000 WOG
2 piece Ball Valve
1000 WOG
▪ High quality insvestment casting
▪ Blow out proof stem
▪ ISO 5211 Mounting flange for actuator
▪ Min. wall thickness design according to ASME B16.34
▪ Test Pressure: API 598/EN 12266-1
Hydrostatic test:
1.4408- 1500 PSI
Seat(air) test: 80 PSI (6 bar) underwater Seat(water): 1100 PSI
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
End Cap CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
-10°C to +200°C (MG 1241 Seat)
End Connections Standard: BSP, NPT, PT
Pressure Rating 1000 PSI (PN 63), 1/4” to 3”
Options Degreased, Anti static, Lever with locking device
Installation If required
Principal technical data
Orifice DN 8 to DN 50
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
End Cap CF8 (DIN 1.4308), CF8M (DIN 1.4408), WCB (DIN 1.0619)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
-10°C to +200°C (MG 1241 Seat)
End Connections Standard: BSP, NPT, PT
Pressure Rating 1000 PSI (PN 63), 1/4” to 3”
Options Degreased, Anti static, Lever with locking device
Installation If required
Principal technical data

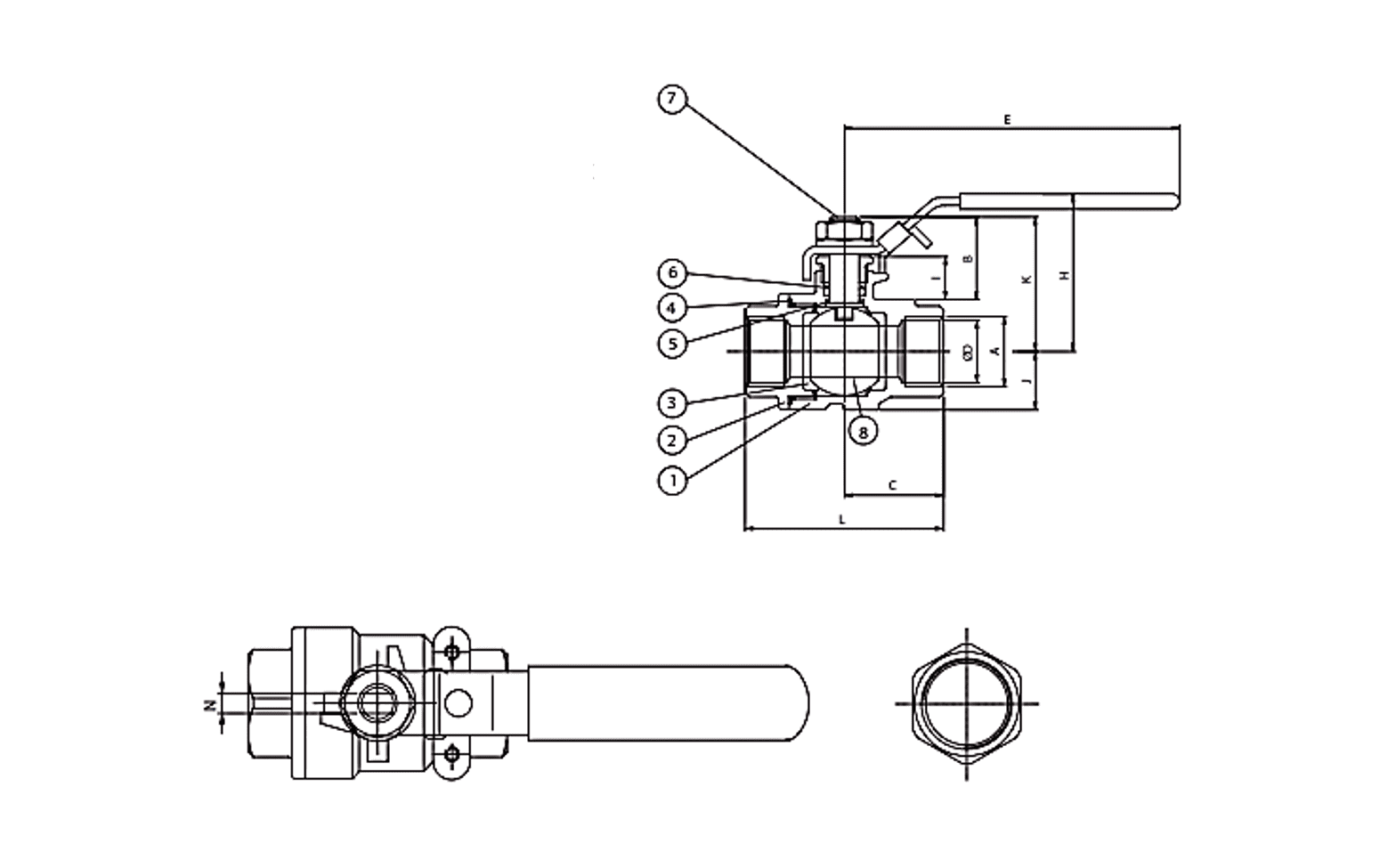

| Size | ØD | A | L | C | B | I | J | K | N | H | E | Weight(kg) |
| DN8 | 11.6 | G1/4“ | 50.0 | 24.0 | 25.0 | 10.0 | 14.0 | 38.0 | 6.0 | 59.0 | 115.0 | 0.29 |
| DN10 | 12.7 | G3/8“ | 50.0 | 24.0 | 25.0 | 10.0 | 14.0 | 38.0 | 6.0 | 59.0 | 115.0 | 0.28 |
| DN15 | 15.0 | G1/2“ | 68.0 | 33.8 | 24.0 | 9.0 | 16.0 | 40.0 | 6.0 | 64.0 | 115.0 | 0.38 |
| DN20 | 20.0 | G3/4“ | 77.0 | 39.4 | 31.0 | 12.0 | 20.0 | 50.0 | 6.3 | 64.0 | 135.0 | 0.59 |
| DN25 | 25.0 | G1“ | 90.0 | 46.3 | 32.0 | 11.0 | 24.0 | 55.0 | 6.3 | 66.0 | 135.0 | 0.91 |
| DN32 | 31.8 | G1-1/4“ | 102.0 | 52.0 | 39.0 | 15.0 | 28.0 | 67.0 | 9.5 | 88.0 | 155.0 | 1.32 |
| DN40 | 38.0 | G1-1/2“ | 108.0 | 53.9 | 39.0 | 16.0 | 36.0 | 72.0 | 9.5 | 90.0 | 155.0 | 1.81 |
| DN50 | 50.8 | G2“ | 125.0 | 62.7 | 38.0 | 10.0 | 46.0 | 85.0 | 9.5 | 103.0 | 190.0 | 3.23 |
