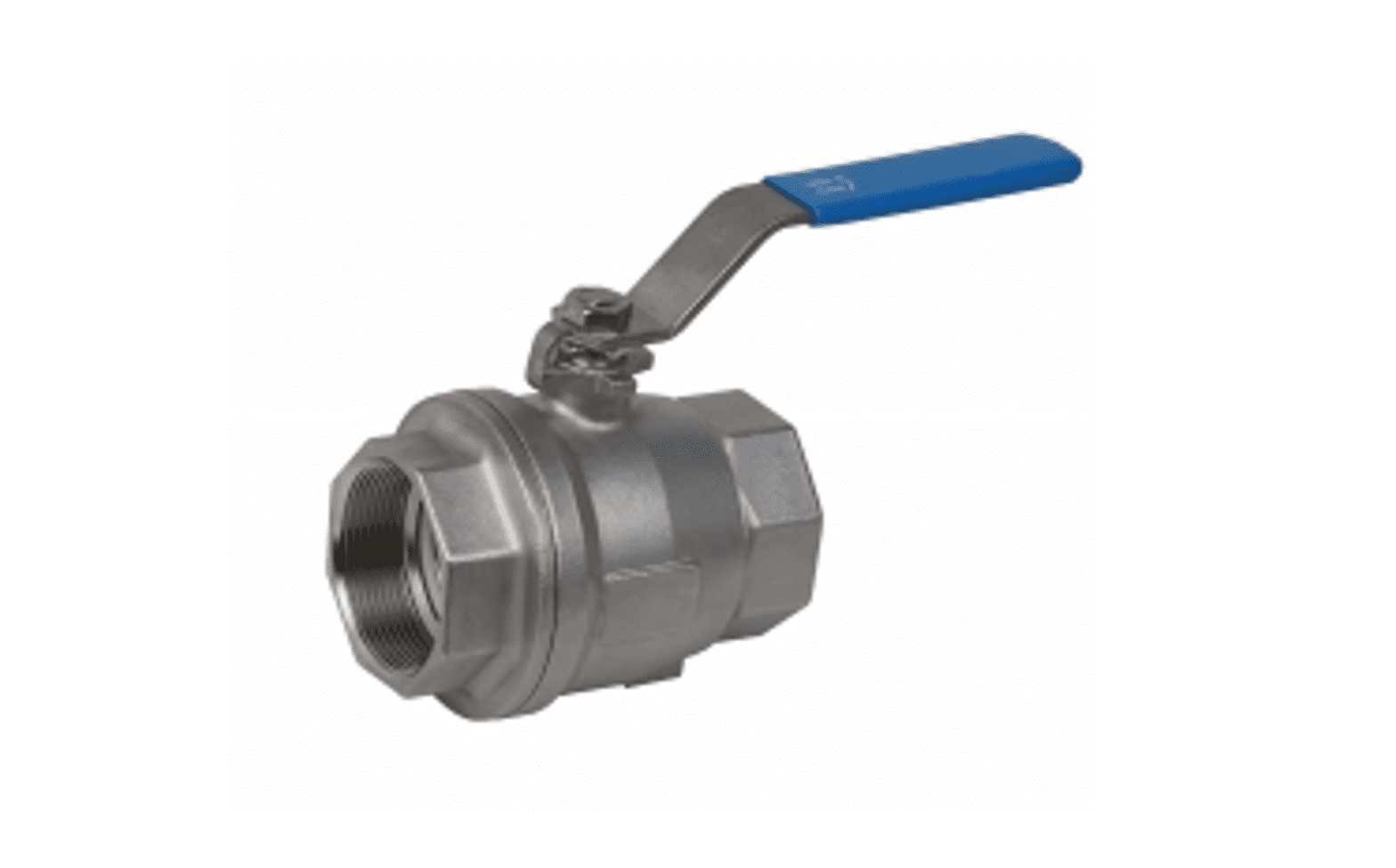

Series. A202 2 piece Ball Valve
PN100
2 piece Ball Valve
PN100
▪ High quality insvestment casting
▪ Blow out proof stem
▪ ISO 5211 Mounting flange for actuator
▪ Min. wall thickness design according to EN 12516-1
▪ Test Pressure: API 598/(EN) 12266-1
Hydrostatic test:
1.4408- 146 bar
Seat(air) test: 80 PSI (6 bar) under water Seat(water): 110 bar
Material
Body DIN 1.4308 (CF8), DIN 1.4408 (CF8M), 1.0619 (WCB)
End Cap DIN 1.4308 (CF8), DIN 1.4408 (CF8M), 1.0619 (WCB)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
-10°C to +200°C (MG 1241 Seat)
End Connections Standard: BSP, NPT, PT
Pressure Rating 1500 PSI (PN 100), 1/4” to 2”
Options Degreased, Anti static, Lever with locking device
Installation If required
Principal technical data
Orifice DN 8 to DN 50
Material
Body DIN 1.4308 (CF8), DIN 1.4408 (CF8M), 1.0619 (WCB)
End Cap DIN 1.4308 (CF8), DIN 1.4408 (CF8M), 1.0619 (WCB)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
-10°C to +200°C (MG 1241 Seat)
End Connections Standard: BSP, NPT, PT
Pressure Rating 1500 PSI (PN 100), 1/4” to 2”
Options Degreased, Anti static, Lever with locking device
Installation If required
Principal technical data

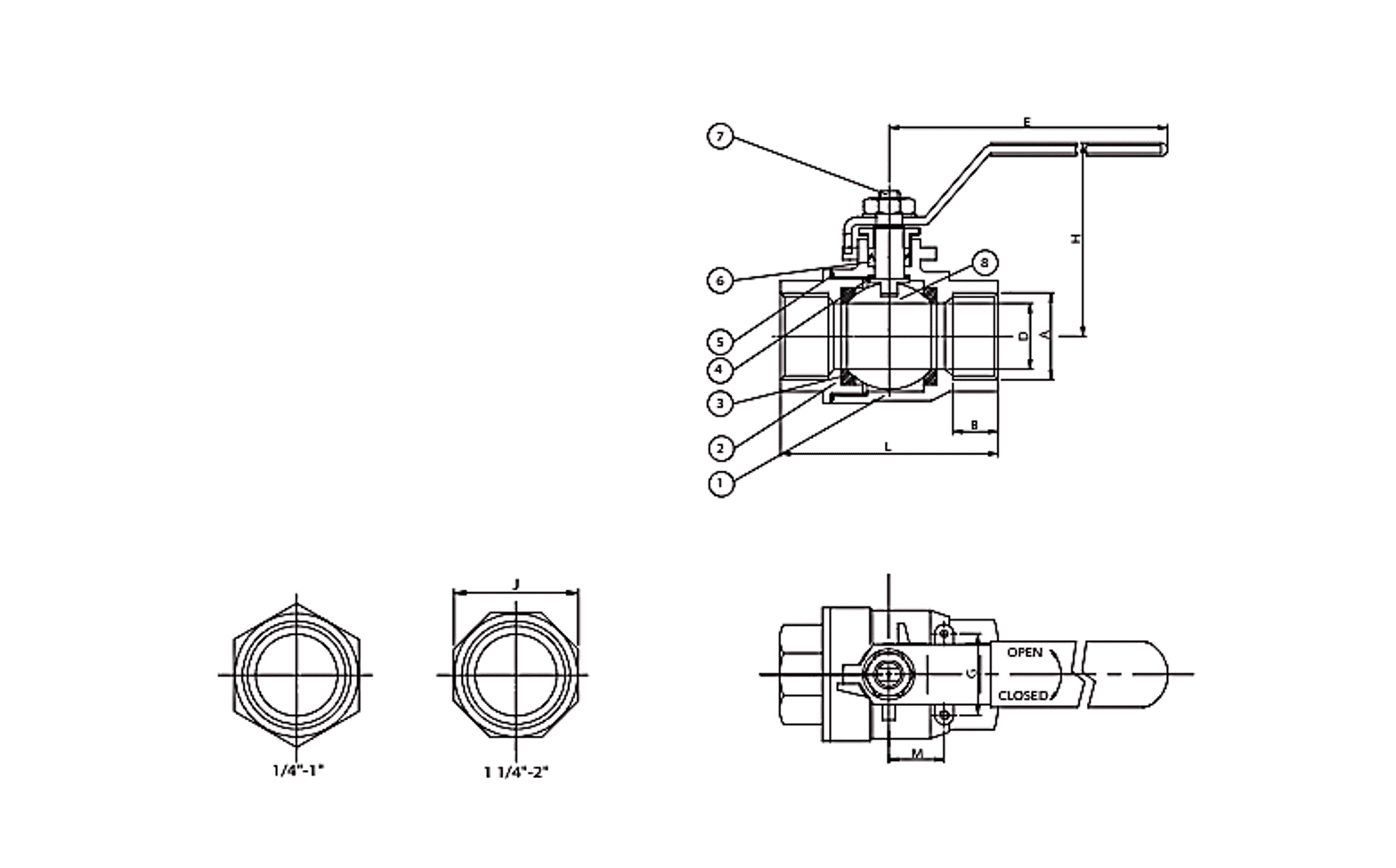

| Size | D | A | L | H | E | J | G | M | B | Weight(kg) |
| DN8 | 11.6 | G1/4“ | 55.0 | 59.0 | 115.0 | 23.6 | 28.5 | 12.7 | 10.0 | 0.30 |
| DN10 | 12.7 | G3/8“ | 60.0 | 59.0 | 115.0 | 23.9 | 28.5 | 12.7 | 12.5 | 0.30 |
| DN15 | 15.0 | G1/2“ | 75.0 | 61.0 | 115.0 | 26.7 | 28.5 | 12.7 | 16.0 | 0.43 |
| DN20 | 20.0 | G3/4“ | 80.0 | 64.0 | 135.0 | 32.6 | 35.0 | 22.4 | 16.0 | 0.65 |
| DN25 | 25.0 | G1“ | 90.0 | 66.0 | 135.0 | 40.1 | 35.0 | 22.4 | 19.1 | 0.90 |
| DN32 | 31.8 | G1-1/4“ | 110.0 | 88.0 | 155.0 | 49.8 | 38.1 | 25.4 | 22.0 | 1.30 |
| DN40 | 38.1 | G1-1/2“ | 120.0 | 90.0 | 155.0 | 56.5 | 38.1 | 25.4 | 23.0 | 2.11 |
| DN50 | 50.8 | G2“ | 140.0 | 103.0 | 190.0 | 69.9 | 38.1 | 25.4 | 24.0 | 3.40 |
