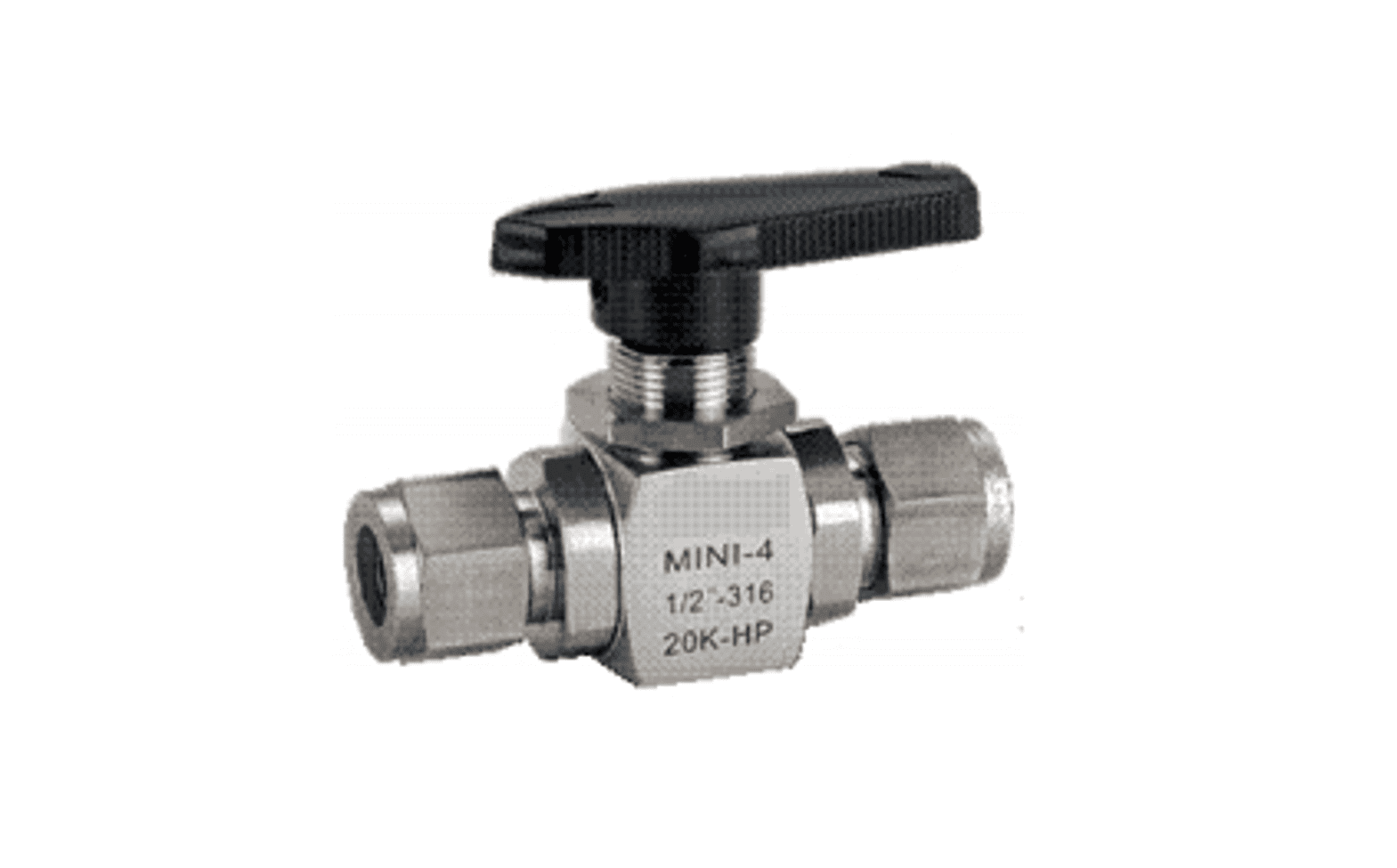

Series. A205 Gauge Valve
1000 WOG
Gauge Valve
1000 WOG
▪ High quality insvestment casting
▪ Compact and light weight
▪ Min. wall thickness design according to ASME B16.34
▪ Test Pressure: API 598/EN 12266-1
Hydrostatic test:
1.4408: 1500 PSI
Seat(air) test: 80 PSI (6 bar) under water Seat(water) test: 1100 PSI
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE
Body Seal PTFE
Stem Seal PTFE
Handle Material ABS
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
End Connections Standard: Screwed bonnet type with SS ferule
Pressure Rating 1500 PSI (PN 100), 1/4” to 2”
Options Degreased, Anti static
Installation If required
Principal technical data
Orifice DN 8 to DN 20
Material
Body CF8 (DIN 1.4308), CF8M (DIN 1.4408)
Stem material 304SS, 316SS
Ball 1.4308, 1.4408
Seal Material
Main Seal PTFE
Body Seal PTFE
Stem Seal PTFE
Handle Material ABS
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
End Connections Standard: Screwed bonnet type with SS ferule
Pressure Rating 1500 PSI (PN 100), 1/4” to 2”
Options Degreased, Anti static
Installation If required
Principal technical data
| Size | A | B | C | ØD | E | F | G | H | L | Weight(kg) |
| DN8 | 15.0 | 37.59 | 9.25 | 4.5 | 44.0 | 1.8 | 17.25 | 31.0 | 75.18 | 0.11 |
| DN10 | 25.1 | 40.4 | 11.0 | 7.2 | 60.0 | 3.1 | 25.0 | 55.6 | 80.8 | 0.25 |
| DN15 | 36.1 | 52.75 | 17.0 | 10.4 | 63.0 | 3.1 | 24.0 | 60.0 | 105.5 | 0.4 |
| DN20 | 36.1 | 52.75 | 17.0 | 15.8 | 63.0 | 3.1 | 24.0 | 60.0 | 105.5 | 0.57 |
