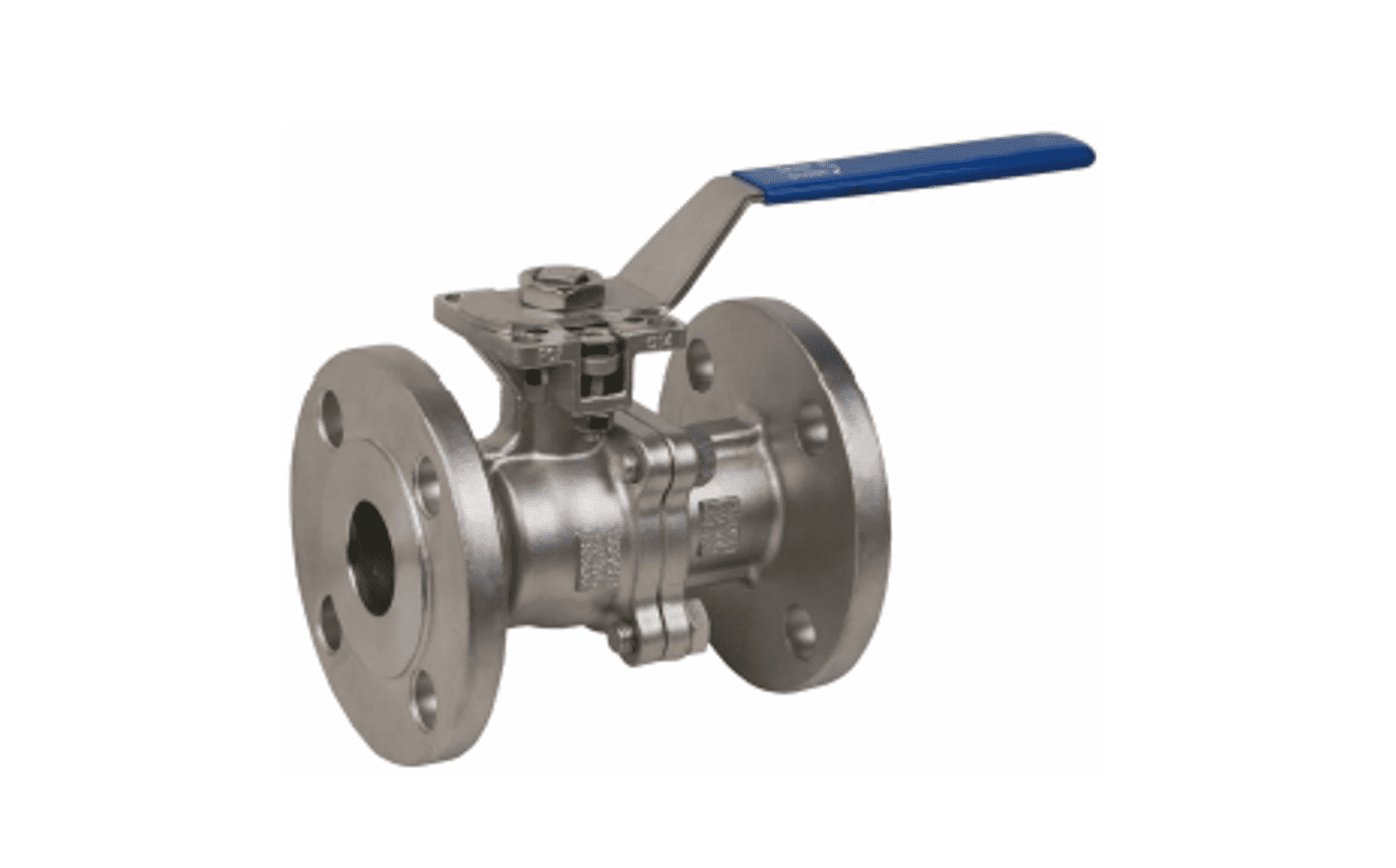

Series. G910 2 piece Flanged End Ball Valve
JIS10K
2 piece Flanged End Ball Valve
JIS10K
▪ High quality investment casting
▪ Full bore design
▪ Blow out proof stem
▪ ISO 5211 Mounting flange for actuator
▪ Min. wall thickness design according to ASME B16.34
▪ Fire Safe Design: API 607
▪ Test Pressure: API598/EN 12266-1
Hydrostatic test:
1.4408- 24K/340 PSI
Seat(air) test: 80 PSI (6 Bar) under water Seat(water) test: 156 PSI
Orifice DN to DN 100
Material
Body SCS13A (DIN 1.4308), SCS14A (DIN 1.4408), WCB (DIN 1.0619)
End Cap SCS13A (DIN 1.4308), SCS14A (DIN 1.4408), WCB (DIN 1.0619)
Stem material 304SS, 316SS
Ball SCS13, SCS14
Seal Material
Main Seal PTFE or RPTFE
Body Seal PTFE or RPTFE
Stem Seal PTFE/RPTFE with FKM O-ring
Option MG 1241 (Steam), TFM4215, TFM 1600, PEEK
Handle Material SUS304/Carbon steel
Media Gaseous and liquids that is compatible with the selected material
Media Temperature -10°C to +180°C (PTFE Seat)
-10°C to +200°C (MG 1241 Seat)
End Connections Flange End
Pressure Rating JIS10K, 1/2" to 4"
Options Degreased, Anti static, V-port ball, Lever with locking device
Installation If required

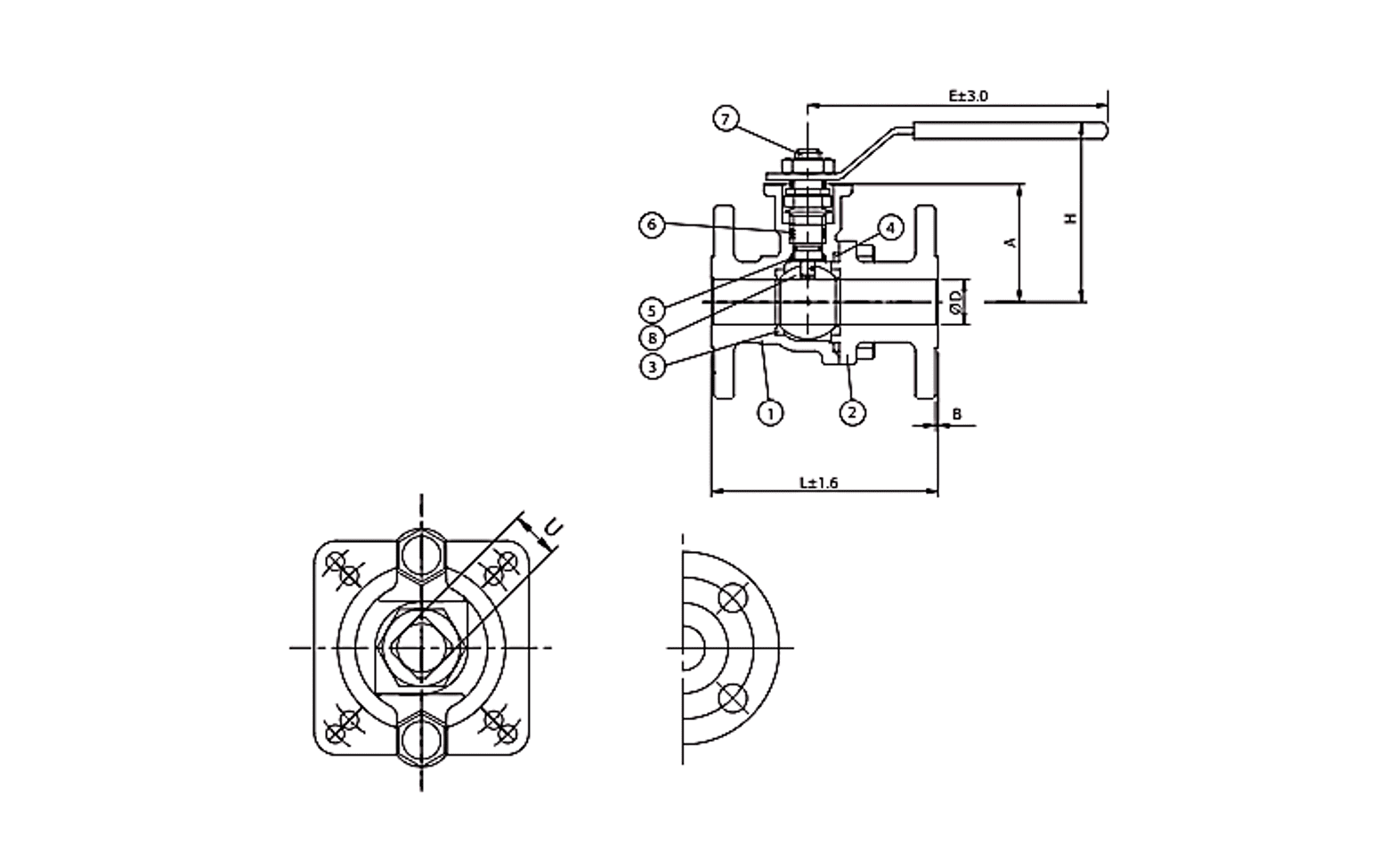

Principal technical data
| Size | ØD | L | H | E | ⃞U | B | A | ISO 5211 | Weight (kg) |
| 1/2" | 15.0 | 108.0 | 78.0 | 97.0 | 9 | 1.0 | 49.0 | F03/F05 | 2.30 |
| 3/4" | 20.0 | 117.0 | 83.0 | 97.0 | 9 | 1.0 | 54.0 | F03/F05 | 2.97 |
| 1" | 25.0 | 127.0 | 101.0 | 142.0 | 11 | 1.0 | 64.5 | F04/F05 | 3.84 |
| 1-1/4" | 32.0 | 140.0 | 109.0 | 142.0 | 11 | 2.0 | 71.0 | F04/F05 | 6.04 |
| 1-1/2" | 38.0 | 165.0 | 117.0 | 190.0 | 14 | 2.0 | 77.5 | F05/F07 | 7.42 |
| 2" | 50.0 | 178.0 | 126.0 | 190.0 | 14 | 2.0 | 85.8 | F05/F07 | 9.93 |
| 2-1/2" | 64.0 | 190.5 | 173.0 | 350.0 | 17 | 2.0 | 113.8 | F07/F10 | 17.8 |
| 3" | 76.0 | 203.0 | 182.0 | 350.0 | 17 | 2.0 | 122 | F07/F10 | 18.4 |
| 4" | 100.0 | 229.0 | 198.0 | 350.0 | 17 | 2.0 | 138.0 | F07/F10 | 25.7 |
